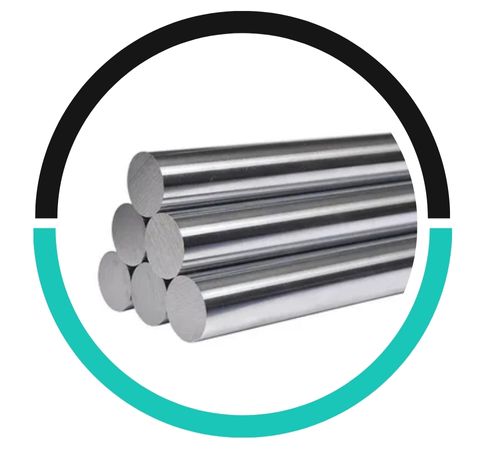

Phehlukwayo Metal, located in Cape Town, South Africa, is your go-to source for top-notch carbon steel products, including Carbon Steel EN-9 bars. These bars are celebrated for their exceptional wear resistance, impressive tensile strength, and excellent machinability, making them perfect for a variety of engineering and industrial uses. Phehlukwayo Metal ensures that their EN-9 bars adhere to strict quality standards, guaranteeing durability and performance even in high-stress environments. With a commitment to precision, quick delivery, and customer satisfaction, the company serves industries like automotive, mining, manufacturing, and general engineering with reliable carbon steel solutions.
Carbon Steel EN-9 is a medium carbon steel that contains about 0.50–0.60% carbon, along with a small percentage of manganese (0.70–1.00%). It boasts high tensile strength ranging from 550–700 MPa and good wear resistance, particularly when hardened and tempered. While it may not be as easy to weld as low-carbon steels, EN-9 machines well and responds effectively to heat treatment, enhancing its strength and toughness. It maintains dimensional stability during machining and strikes a good balance between hardness and machinability, making it suitable for medium-duty mechanical parts and components that require moderate toughness.
| Grade | 070M55 / EN-9 |
|---|---|
| Specification | BS 970 1991 |

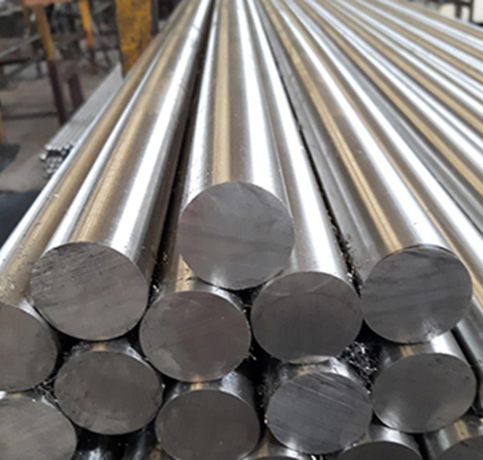

| Round Bar Size | Diameter: 3-~800mm |

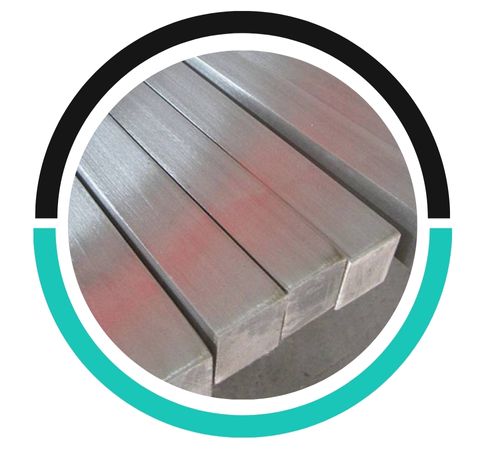

| Square Bar size | 4 to 100mm |
| Flat Bar Size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |

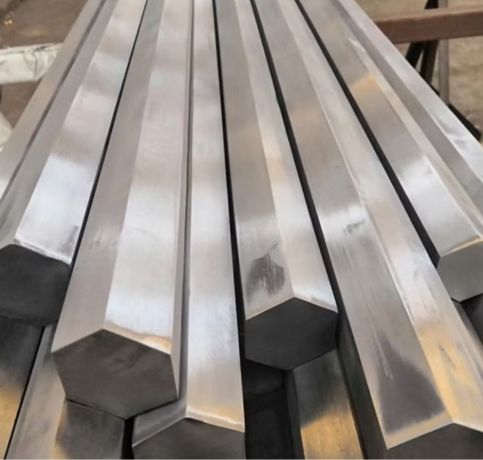

| Hex Bar Size | 2-100mm A/F |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |

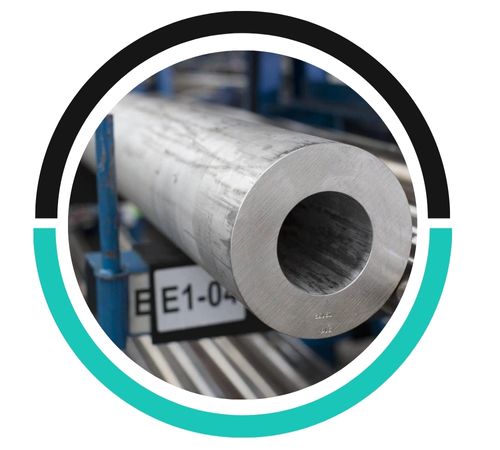

| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Angle Bar Size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Section | 3.0 to 12.0mm thickness |
| Billet Size | 1/2″ to 495mm Diameter |
| Finish | Cold (bright) drawn, centreless ground,smooth turned, Rough Turned, Bright, peeled, hot rolled, hot rolled annealed, slit rolled edge, Polish, Grinding, Centreless Ground & Black |
| Tolerance | K9, K10, K11, K12, H8, H9, H10, H11, H12, H13, or as per clients’ requirements |

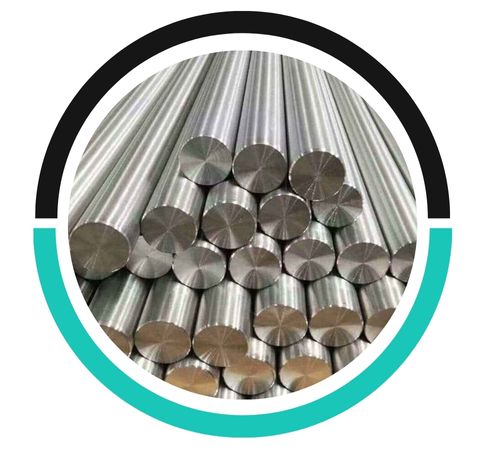

| Surface | Polished, Bright, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Hairline |
| Condition | Hardened & Tempered, Annealed |

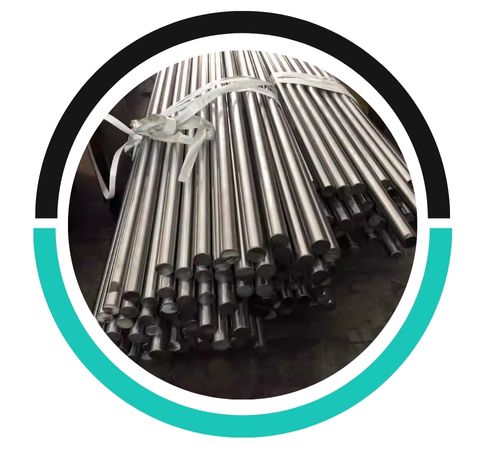

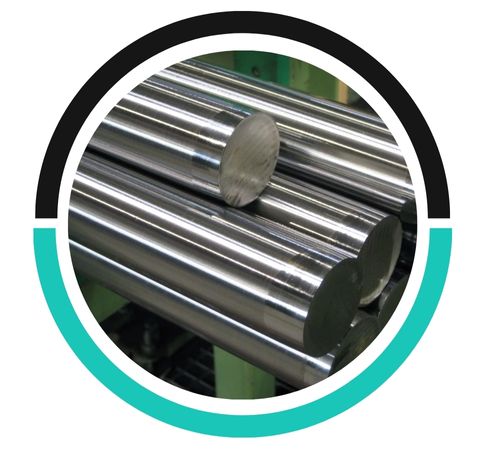

| Technique | en9 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rods |
| Processing | Bar cutting to 650mm |

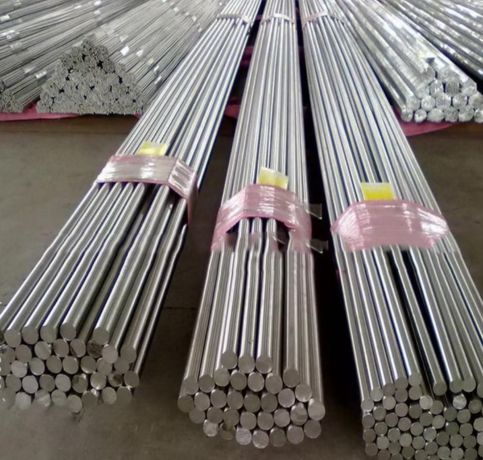

| Form | en9 Welding Rod, Round, Round Rod, Rings, Hollow, Rod, T-Bar, Channel Bar, Flat Bar, Square, Blocks, Precision Ground Bar, Triangle, Rectangle, Hex (A/F), Threaded, Ingot, I/H Bar, Half Round Bar, Profiles, Billet, Forging etc. |
| EN9 / 070M55 Bars and Rods Conforms To NACE MR0175/ISO 15156 | |
| Grade | Cr | C | Ni | Si | S | Mn | P | Mo |
| EN – 9 | – | .50 – .60 | – | .05 – .35 | .040 MAX | .50 – .80 | .040 MAX | – |
| Heat Treatment | Condition Tons/SQ.inch | Tensile Stress RE MPA | RP0.2 MPA | A min on 5.65so | Impac | Hardness HB | Limited Ruling Section mm | |
| IZODFT.L.b | KCV Joules | |||||||
| Normalise | 45 | 700 | – | 12 | – | – | 201-255 | 63 |
| 39 | 600 | – | 13 | – | – | 170/223 | 250 | |
| R | 45/55 | 700/850 | 385 | 14 | – | – | 201/277 | 100 |
| S | 50/60 | 775/925 | 450 | 14 | – | – | 223/277 | 63 |
| T | 55/65 | 850/1000 | 555 | 12 | – | – | 248/302 | 19 |
| Standard | CS EN-9 |
| UNS | – |
| WERKSTOFF NR. | CK55 |
| BS | 070M55 |
| IS | C55 |
| JIS | – |
| EN | EN9 |
| SAE/AISI | 1055 |
Carbon Steel EN-9 is commonly used for manufacturing bolts, nuts, fasteners, and structural components in heavy-duty applications like automotive and construction industries.
EN-9 offers excellent tensile strength, wear resistance, and hardenability, making it suitable for components subjected to mechanical stresses and heavy-duty environments.
Yes, Carbon Steel EN-9 can be heat-treated to enhance its hardness and strength, making it versatile for various engineering applications.
You’ll find Carbon Steel EN-9 bars commonly used in **automotive applications** for parts like shafts, axles, gears, and crankshafts, thanks to their high tensile strength. In **industrial machinery**, EN-9 is utilized for spindles, couplings, keys, and pins where wear resistance and durability are crucial. The **mining and agricultural sectors** rely on it for machine parts that face continuous motion and impact. Additionally, it finds its place in **general engineering** for tools, fixtures, and heavy-duty fasteners. EN-9 delivers a robust, dependable solution for components that need toughness, dimensional stability, and resistance to mechanical stress.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
