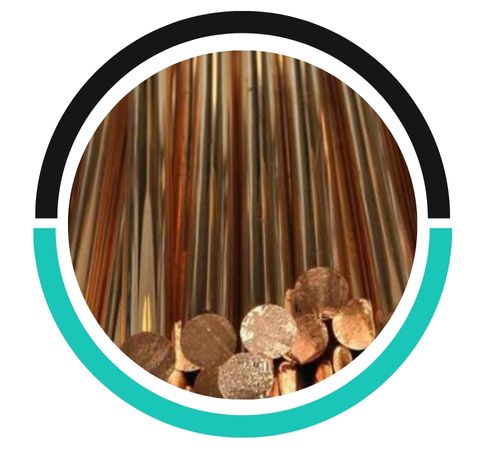

Phehlukwayo Metal, located in Cape Town, South Africa, has built a solid reputation as a reliable manufacturer and supplier of top-notch Copper Bars and Rods, catering to a variety of industrial and commercial sectors. Known for their precision engineering and unwavering reliability, this company delivers products that adhere to strict quality standards. Their Copper Bars and Rods are crafted using cutting-edge manufacturing techniques, guaranteeing uniformity, strength, and outstanding conductivity. Phehlukwayo Metal prioritizes customer satisfaction by providing customized solutions tailored to specific needs, making them a go-to choice for engineers, fabricators, and industries that require high-quality copper materials for effective and long-lasting performance in critical applications.
The Copper Bars and Rods from Phehlukwayo Metal are primarily made from electrolytic tough pitch copper (ETP), boasting a purity of around 99.9% copper. They offer remarkable electrical and thermal conductivity, low magnetic permeability, and impressive corrosion resistance. On the mechanical side, these copper products provide good tensile strength, ductility, and malleability, making them easy to form, bend, and machine without the risk of cracking. This blend of softness and toughness makes them ideal for applications that demand both structural integrity and efficient conductivity. Their reliable performance across varying temperatures, along with excellent resistance to wear and fatigue, ensures they last in even the most challenging industrial settings.
| Specifications | ASTM B187, ASTM B301 / ASME SB187, SB301 |
| Range | 3.17 MM TO 350 MM DIA |
| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Material | Copper |
| ETP GRADE | |
|---|---|

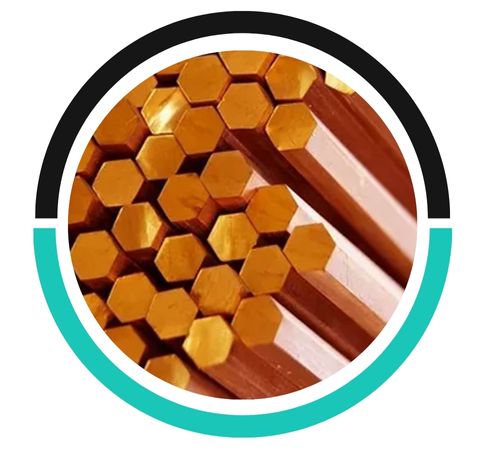

| Copper Hex Bar | ø 8 mm to 110 mm |

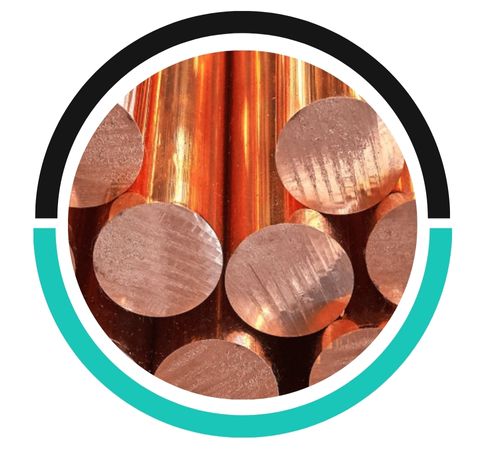

| Copper Round | ø 7 mm to 120 mm |

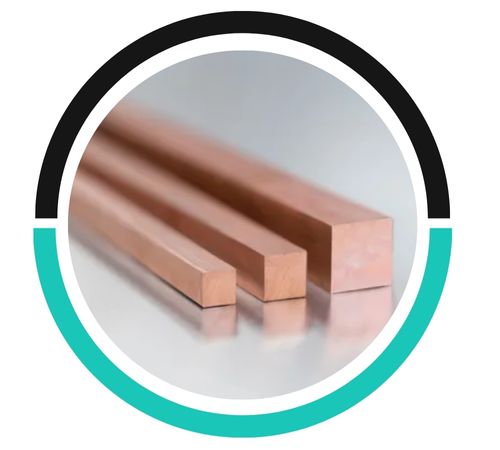

| Copper Square Bar | 10*10 mm to 90*90 mm |
| Electrical Conductivity: – (% IACS) | 98.5% min |
| Standards | BS EN 13601:2013, IS: 191, 1897 & 613 |
| Specifications | Cu : 99.90%, 02<400ppm |
| Copper Round Rod C101 | |
|---|---|
| 6.3mm (1/4″) | 38.1mm (1 1/2″) |
| 9.5mm (3/8″) | 30mm |
| 12.7mm (1/2″) | 25.4mm (1″) |
| 12mm | 25mm |
| 10mm | 20mm |
| 16mm | 19mm (3/4 |
| Diameter in mm | Weight in Kg/m |
|---|---|
| 8 | 0,447 |
| 6 | 0,252 |
| 9,5 | 0,631 |
| 12 | 1,007 |
| 11 | 0,846 |
| 60 | 25,164 |
| 12,5 | 1,092 |
| 14 | 1,370 |
| 42 | 12,330 |
| 13 | 1,181 |
| 70 | 34,251 |
| 16 | 1,789 |
| 80 | 44,736 |
| 38 | 10,094 |
| 35 | 8,563 |
| 50 | 17,475 |
| 40 | 11,184 |
| 20 | 2,796 |
| 19 | 2,523 |
| 22 | 3,383 |
| 28 | 5,480 |
| 30 | 6,291 |
| 25 | 4,369 |
| 32 | 7,158 |
| 45 | 14,155 |
| Molecular Weight | 63.55 |
|---|---|
| Boiling Point | 2567 °C |
| Melting Point | 1083.4 °C |
| Density | 8.96 g/cm3 |
| Electrical Resistivity | 1.678 microhm-cm @ 20 °C |
| Appearance | Reddish Metal |
| Young’s Modulus | 110–128 GPa |
| Solubility in H2O | N/A |
| Heat of Fusion | 3.11 Cal/gm mole |
| Electronegativity | 1.9 Paulings |
| Poisson’s Ratio | 0.34 |
| Heat of Vaporization | 72.8 K-cal/gm atom at 2567 °C |
| Tensile Strength | N/A |
| Specific Heat | 0.092 Cal/g/K @ 25 °C |
| Thermal Expansion | (25 °C) 16.5 µm·m-1·K-1 |
| Thermal Conductivity | 4.01 W/cm/K @ 298.2 K |
| Vickers Hardness | 369 MPa |
Yes, Copper Bars and Rods can be susceptible to galvanic corrosion when in contact with dissimilar metals, particularly in the presence of moisture or electrolytes. Proper insulation helps prevent this.
Yes, Copper Bars and Rods are fully recyclable. The material retains its properties after recycling, making it an eco-friendly choice for sustainable industrial applications and reducing environmental impact.
Yes, Copper Bars and Rods can be used for natural gas applications. They offer excellent corrosion resistance and conductivity, making them suitable for gas systems, provided they are properly maintained.
Copper Bars and Rods are extensively utilized in the electrical, construction, and manufacturing industries due to their superior conductivity and durability. They play a crucial role in electrical wiring, busbars, grounding systems, and power distribution networks. In mechanical and construction contexts, copper rods are commonly found in plumbing, heat exchangers, and roofing components. Moreover, their corrosion resistance and antimicrobial properties make them perfect for marine, chemical, and medical equipment. Engineers and fabricators also rely on copper bars and rods for a wide range of applications, thanks to their versatility and performance.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
