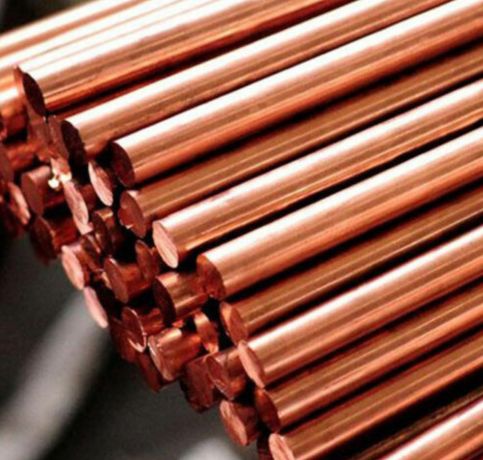

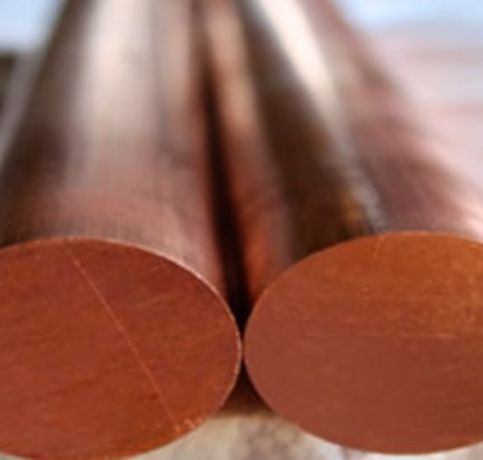

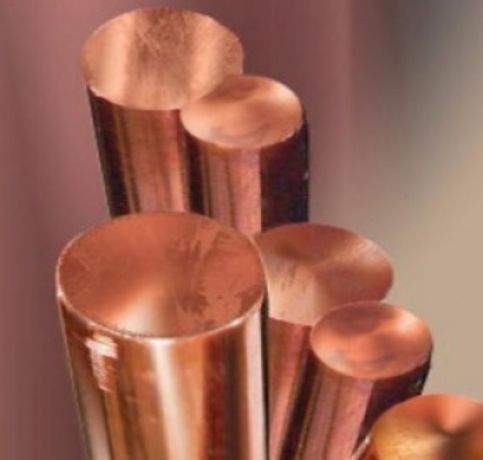

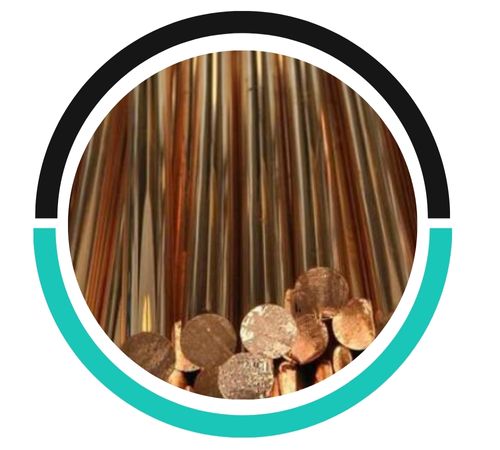

Phehlukwayo Metal, located in Cape Town, South Africa, stands out as a top manufacturer and supplier of high-quality copper products, particularly Copper C10200 Bars and Rods. These products are celebrated for their impressive electrical and thermal conductivity, outstanding corrosion resistance, and remarkable ductility. Each bar and rod is meticulously crafted to meet the rigorous demands of industrial, electrical, and electronic applications. With a blend of advanced metallurgical knowledge and precision manufacturing, Phehlukwayo Metal ensures that their components are not only durable and reliable but also high-performing. The Copper C10200 Bars and Rods are perfect for situations that require exceptional conductivity, mechanical stability, and long-lasting reliability, making them a go-to choice in the electrical, industrial, and precision engineering fields.
These Copper C10200 Bars and Rods are made from high-purity electrolytic tough pitch (ETP) copper, boasting a minimum copper content of 99.9%. This composition guarantees excellent electrical and thermal conductivity. On the mechanical side, the alloy shows moderate tensile and yield strength, along with high ductility, superior malleability, and excellent workability, which makes forming, machining, and fabrication a breeze. Copper C10200 maintains its shape and structural integrity even under mechanical and thermal stress, ensuring dependable long-term performance in demanding electrical, industrial, and electronic applications that require both strength and high conductivity.
| Specifications | ASTM B187, ASTM B301 / ASME SB187, SB301 |
| Range | 3.17 MM TO 350 MM DIA |

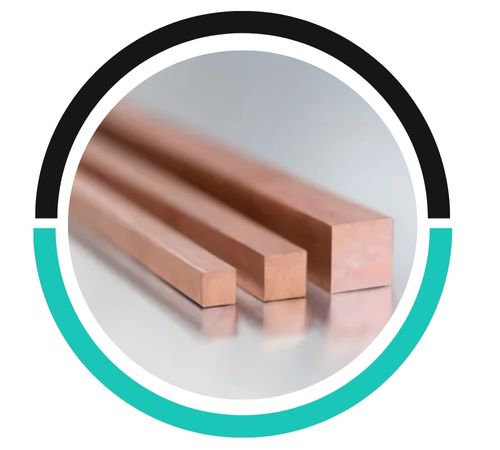

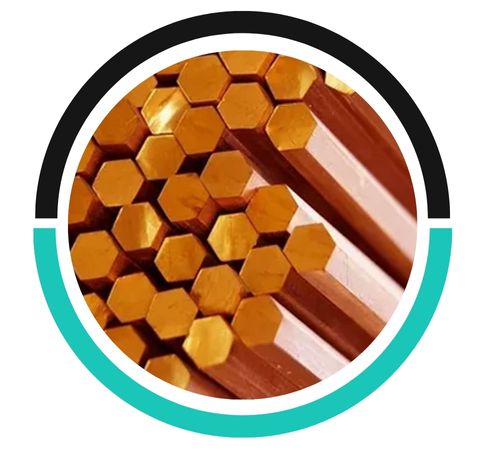

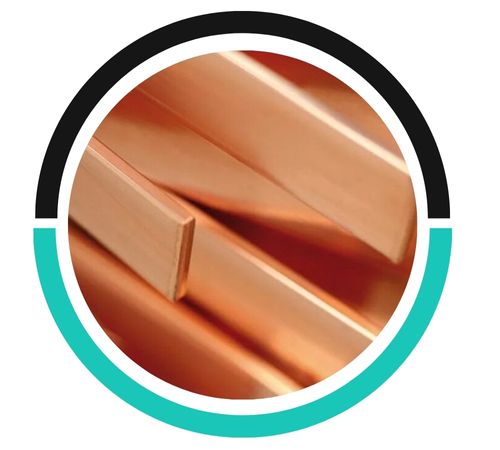

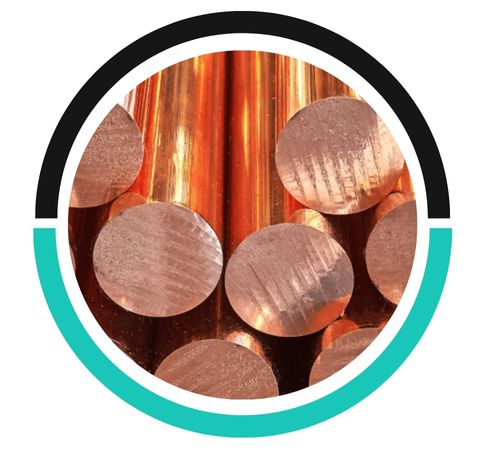

| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Copper Grades | C10200 |
| Melting Point – Solidus ⁰F | 1981 |
| Melting Point – Liquidus ⁰F | 1981 |
| Density lb/cu in. at 68⁰F | 0.323 |
| Electrical Conductivity % IACS at 68⁰F | 101 |
| Specific Gravity | 8.94 |
| Specific Heat Capacity Btu/lb/⁰F @ 68 ⁰F | 0.092 |
| Thermal Conductivity Btu/sq ft/ft hr/ ⁰F at 68⁰F | 226 |
| Coefficient of Thermal Expansion 10-6 per ⁰F (68-392 ⁰F) | 9.6 |
| Modulus of Rigidity ksi | 6400 |
| Coefficient of Thermal Expansion 10-6 per ⁰F (68-212 ⁰F) | 9.4 |
| Modulus of Elasticity in Tension ksi | 17000 |
| Coefficient of Thermal Expansion 10-6 per ⁰F (68-572 ⁰F) | 9.8 |
| Standards | Country | Value |
|---|---|---|
| EN | Europe | Cu-OF |
| DIN CEN/TS 13388 | Germany | CW008A |
| UNS | – | C10200 |
| JIS | Japan | C1020 |
| GB | China | TU1 |
| BS | England | C102 |
| Thermal Properties | Metric | English |
|---|---|---|
| Annealing Point | >= 371 °C | >= 700 °F |
| CTE, linear | 17.0 µm/m-°C @Temperature 20.0 – 100 °C | 9.44 µin/in-°F @Temperature 68.0 – 212 °F |
| 17.7 µm/m-°C @Temperature 20.0 – 300 °C | 9.83 µin/in-°F @Temperature 68.0 – 572 °F | |
| 17.3 µm/m-°C @Temperature 20.0 – 200 °C | 9.61 µin/in-°F @Temperature 68.0 – 392 °F | |
| Thermal Conductivity | 391 W/m-K @Temperature 20.0 °C | 2710 BTU-in/hr-ft²-°F @Temperature 68.0 °F |
| Melting Point | 1083 °C | 1981 °F |
| Specific Heat Capacity | 0.385 J/g-°C @Temperature 20.0 °C | 0.0920 BTU/lb-°F @Temperature 68.0 °F |
| Property/unit | Condition | Min | Max |
|---|---|---|---|
| Tensile Strength (N/mm2) | 1/2H | 290 | |
| Elongation in 5.65 Cross sectional area | O | 32 | |
| Tensile Strength (N/mm2) | H | 350 | |
| Tensile Strength (N/mm2) | O | 260 | |
| Elongation in 5.65Cross sectional area | 1/2H | 4 |
Yes, Copper C10200 Bars and Rods are fully recyclable. Copper retains its properties after recycling, making it an environmentally friendly and sustainable material for repeated use in various industries.
Copper C10200 Bars and Rods generally do not require corrosion protection coatings as copper naturally resists corrosion. However, in certain aggressive environments, protective coatings may be used to enhance durability.
Yes, Copper C10200 Bars and Rods can be welded using techniques like TIG and MIG welding. Their high conductivity and low oxygen content ensure strong and reliable welds for various applications.
In the electrical and electronic sectors, Copper C10200 Bars and Rods are commonly used for busbars, conductors, connectors, terminals, and wiring, where high conductivity and corrosion resistance are crucial. They also find applications in power generation, transformers, heat exchangers, and industrial machinery, facilitating efficient thermal and electrical transfer. Moreover, these bars and rods are perfect for marine equipment, chemical processing components, and other uses that demand durability, reliability, and top-notch performance. Phehlukwayo Metal’s Copper C10200 Bars and Rods deliver long-lasting, high-performance solutions that you can trust.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
