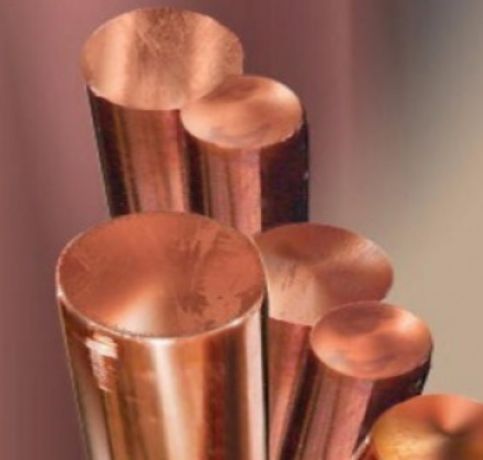

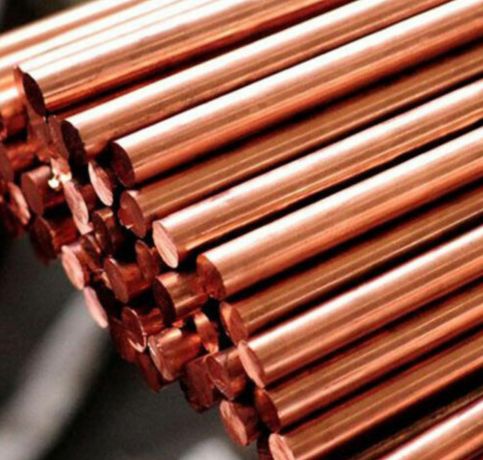

Phehlukwayo Metal, located in Cape Town, South Africa, stands out as a top-notch manufacturer and supplier of premium copper products, including Copper C10300 Bars and Rods. These bars and rods are celebrated for their remarkable electrical and thermal conductivity, impressive corrosion resistance, and exceptional ductility. They are meticulously crafted to meet the rigorous demands of industrial, electrical, and electronic applications. With a blend of advanced metallurgical knowledge and precision manufacturing, Phehlukwayo Metal ensures that their components are reliable, durable, and high-performing. Copper C10300 Bars and Rods are the go-to choice for projects that require outstanding conductivity, mechanical stability, and long-lasting reliability, making them highly sought after in the electrical, industrial, and precision engineering sectors.
Made from high-purity electrolytic tough pitch (ETP) copper, Copper C10300 Bars and Rods contain at least 99.9% copper. This high-quality composition guarantees excellent electrical and thermal conductivity, top-notch corrosion resistance, and great ductility. On the mechanical side, the alloy provides moderate tensile and yield strength, along with excellent malleability and superior workability for forming, machining, and fabrication. Copper C10300 is designed to maintain its shape under thermal and mechanical stress, ensuring dependable long-term performance in critical electrical, industrial, and electronic applications that require both strength and high conductivity.
| Specifications | ASTM B187, ASTM B301 / ASME SB187, SB301 |
| Range | 3.17 MM TO 350 MM DIA |

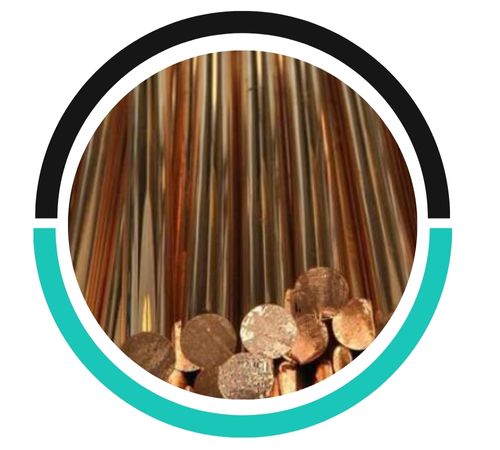

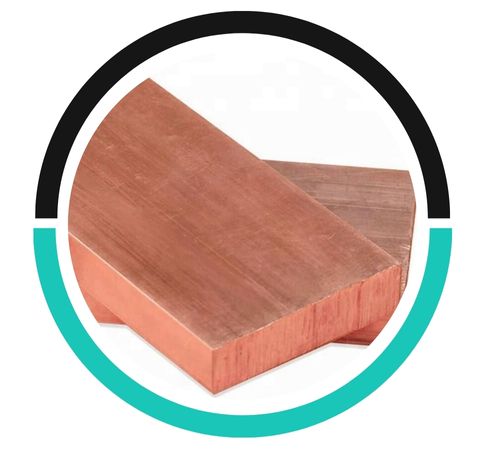

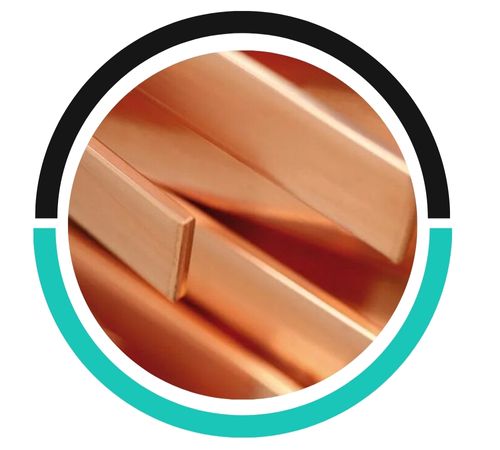

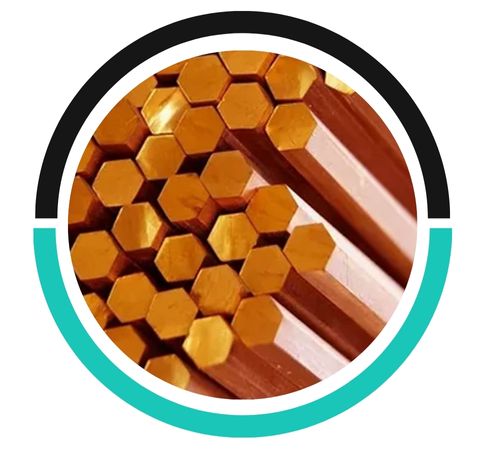

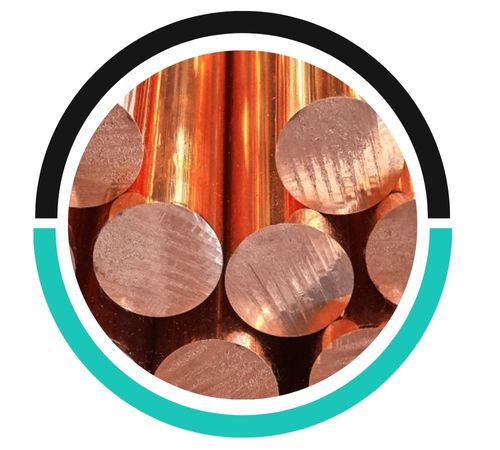

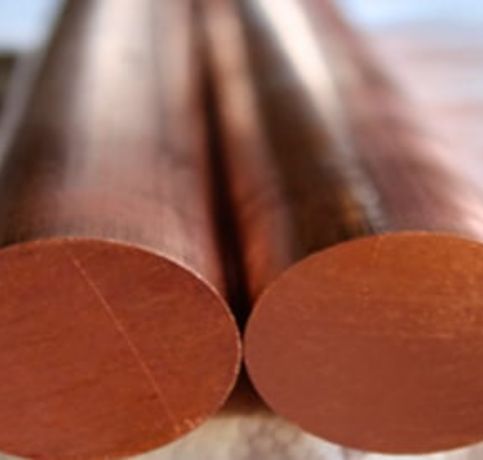

| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Copper Grades | C10300 |
| Treatment | Maximum* | Minimum* |
|---|---|---|
| * Temperature is measured in Fahrenheit. | ||
| Hot Working Temperature | 1600 | 1400 |
| Annealing | 1200 | 700 |
| Alloy Designation | |
|---|---|
| DIN CEN/TS 13388 | CW021A |
| EN | Cu-HCP |
| UNS | C10300 |
| Typical values in annealed temper at 20 °C | |||
|---|---|---|---|
| Thermal expansion coefficient | 20 .. 300 °C | 16.9 | 10-6/K |
| Density | 8.92 g/cm³ | ||
| Thermal conductivity | 385 | W/(m·K) | |
| Modulus of elasticity | GPa | 130 | GPa |
| Specific heat capacity | 0.385 J/(g·K) | ||
| Electrical conductivity | IACS | 98 % | |
| Electrical conductivity | MS/m | 57 | MS/m |
| Thermal coefficient of electrical resistance | (0 .. 100 °C) | 3.7 | 10-3/K |
| Mechanical Properties (EN 1652) | ||||||
| Tensile Strength Rm | Hardness HV * | Temper | Yield Strength Minimum Rp0.2 | Elongation Minimum A50mm | Bending 90° gw bw rel. Bending Radius R/T | |
|---|---|---|---|---|---|---|
| MPa | HV | MPa % | Strip Thickness ≤ 0.50mm | |||
| ≥ 360 | ≥ 110 | R360 | 320 | 2 | 0 | 0.5 |
| 240 .. 300 | 65 .. 95 | R240 | 180 | 8 | 0 | 0 |
| 220 .. 260 | 40 .. 65 | R220 | ≤ 140 * | 33 | 0 | 0 |
| 290 .. 360 | 90 .. 110 | R290 | 250 | 4 | 0 | 0 |
To select the right Copper C10300 Bars and Rods, consider factors such as conductivity, corrosion resistance, strength requirements, and the specific environmental conditions of your application.
Yes, Copper C10300 Bars and Rods are fully recyclable, retaining their properties even after recycling, making them an eco-friendly option for sustainable industrial applications.
Yes, Copper C10300 Bars and Rods can be used for potable water applications due to their corrosion resistance, antimicrobial properties, and compliance with drinking water standards.
These Copper C10300 Bars and Rods are extensively utilized in electrical and electronic applications, serving as busbars, connectors, terminals, wiring, and conductors thanks to their high conductivity and corrosion resistance. They also find their place in power generation, transformers, heat exchangers, and industrial machinery that demand efficient thermal and electrical transfer. Furthermore, these bars and rods are perfect for marine components, chemical processing equipment, and other applications where durability, reliability, and top performance are crucial. Phehlukwayo Metal’s Copper C10300 Bars and Rods deliver exceptional performance, making them a trusted choice in various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
