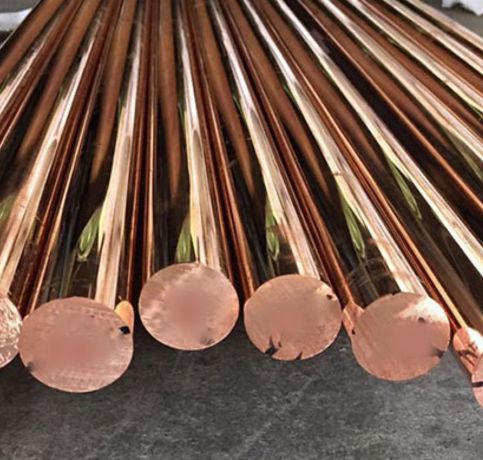

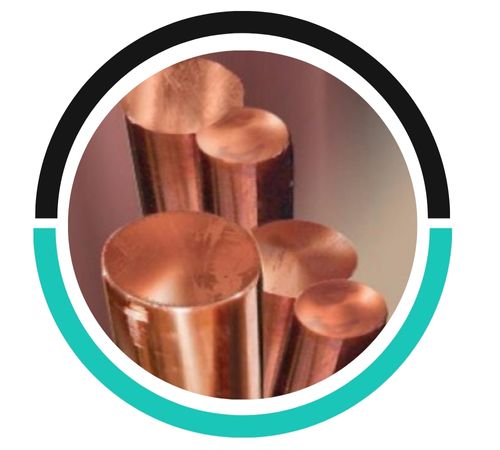

Phehlukwayo Metal, located in Cape Town, South Africa, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Copper Nickel Bright Bars, serving a variety of industrial and marine needs. Known for their precision and consistency, these bars are crafted under rigorous quality control measures, guaranteeing an excellent surface finish and precise dimensions. By blending cutting-edge manufacturing techniques with deep industry knowledge, Phehlukwayo Metal delivers Copper Nickel Bright Bars tailored to meet the unique requirements of clients across different sectors, providing durability, corrosion resistance, and outstanding performance even in tough conditions. Their dedication to quality makes them a go-to choice for businesses in search of dependable metal solutions.
Typically, Copper Nickel Bright Bars are made up of copper with a nickel content ranging from 10% to 30%, sometimes with small amounts of iron and manganese. This alloy is known for its impressive resistance to corrosion, particularly in seawater, and it also boasts excellent thermal and electrical conductivity. On the mechanical side, the bars offer good tensile strength, high ductility, and toughness, making them resilient against wear and fatigue in demanding situations. The blend of strength and corrosion resistance ensures a long service life, while their bright finish not only enhances their visual appeal but also minimizes the need for extra surface treatments, making them perfect for both practical and decorative uses.
Specification : EN, DIN, JIS, ASTM, BS, ASME, AISI
Standard Specification : ASTM B111 / ASME SB111
Size : 15NB to 150NB IN
Diameter : 3.17mm to 350mm diameter
Length : 100 mm to 3000 mm Long & Above
Tolerance : H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc

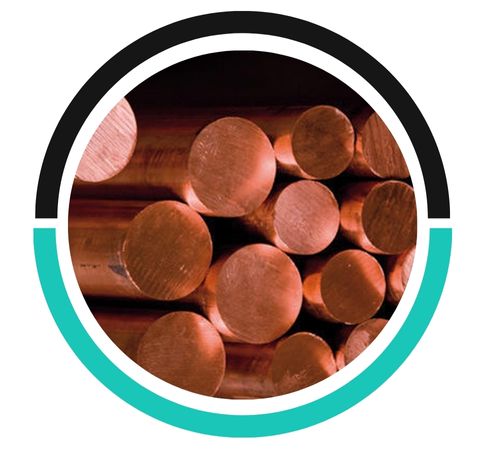

Surface : Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Hairline
Condition : Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished
| Grade | Mn | Cu | Pb | Fe | Ni | Zn |
|---|---|---|---|---|---|---|

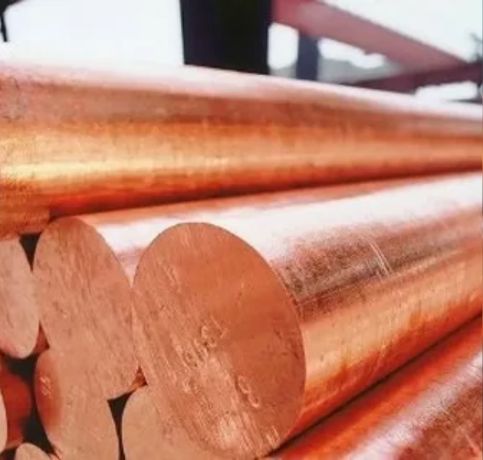

| 90/10 | 1.0 max | 88.6 min | 0.5 max | 1.8 max | 9-11 max | 1 max |

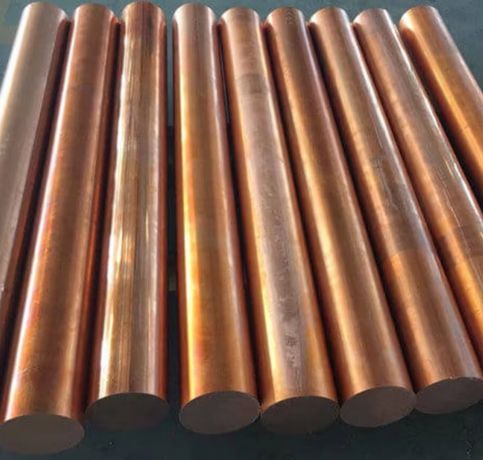

| 70/30 | 1 max | 65.0 min | 0.5 max | 0.4-1.0 | 29-33 | 1 max |
| Grade | Melting point | Density | Tensilestrength | Elongation | Yieldstrength(0.2%Offset) |
|---|---|---|---|---|---|
| 90/10 | 2260°F | 8.8g/cm3 | 50000 PSi | 30% | 20000PSi |
| 70/30 | 2260°F | 0.323 lb/in3 at 68°F | 50000 PSi | 30% | 20000PSi |
| Grade | UNS | Werkstoff Nr. |
| 90/10 | C70600 | 2.0872 |
| 70/30 | C71500 | 2.0882 |
| Bar Diameter (mm) | Weight (kg/m) |
|---|---|
| 6 | 0.22 |
| 8 | 0.39 |
| 10 | 0.62 |
| 12 | 0.89 |
| 16 | 1.58 |
| 20 | 2.47 |
| 25 | 3.85 |
| 32 | 6.31 |
| 40 | 9.86 |
| 45 | 12.5 |
| 50 | 15.4 |
| 60 | 22.2 |
| 65 | 26.0 |
| 75 | 34.7 |
| 90 | 49.9 |
| 100 | 61.6 |
Yes, Copper Nickel bright bars are highly customizable in terms of dimensions, lengths, and surface finishes to meet specific industry requirements, providing tailored solutions for various applications and projects.
These Copper Nickel Bright Bars find extensive application in marine settings, shipbuilding, desalination plants, and offshore oil and gas equipment, thanks to their exceptional resistance to corrosion and biofouling. They are also utilized in heat exchangers, condensers, and piping systems where durability and reliability are paramount. Beyond industrial uses, these bars are valuable in architectural and decorative projects, electrical components, and precision engineering, where dimensional accuracy and surface quality are crucial. Their versatility, combined with mechanical strength and resistance to harsh conditions, makes them a preferred choice across various applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Phehlukwayo Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Cape Town, South Africa
