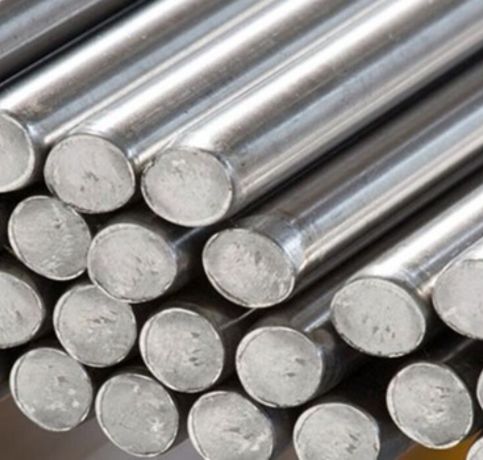

Anucha Metals stands out as a reliable manufacturer and supplier of High Speed Steel M35 Bars right in the heart of Bangkok, Thailand. They offer top-notch tool steels that are renowned for their exceptional performance in high-temperature and high-stress situations. These bars are a go-to choice for cutting tools, drills, and milling operations, thanks to their remarkable wear resistance, hardness, and red-hardness features. With a focus on precise composition and controlled manufacturing processes, Anucha Metals guarantees an excellent surface finish, precise dimensions, and consistent mechanical strength in every single product.
The High Speed Steel M35 Bars are made up of a blend of carbon, tungsten, molybdenum, vanadium, cobalt, and chromium, all of which work together to boost hardness, edge retention, and heat resistance. The inclusion of cobalt (around 5%) enhances the alloy’s hot hardness and tempering stability, enabling tools crafted from M35 to keep their cutting edge even at high temperatures. These bars are known for their high tensile strength, impressive toughness, and superior grindability.
| ASTM A600 | C | Mn | P | S | Si | Cr | V | Mo | W | Co | ||||||||
| M35 | 0.82 | 0.95 | 0.15 | 0.40 | 0.03 | 0.03 | 0.20 | 0.45 | 3.80 | 4.50 | 1.75 | 2.15 | 4.75 | 5.25 | 5.50 | 6.50 | 4.60 | 5.00 |
| DIN ISO 4957 | C | Mn | P | S | Si | Cr | V | Mo | W | Co | ||||||||
| 1.3243/HS6-5-2-5 | 0.87 | 0.95 | … | 0.40 | 0.03 | 0.03 | … | 0.45 | 3.80 | 4.50 | 1.70 | 2.10 | 4.70 | 5.20 | 5.90 | 6.70 | 4.50 | 5.00 |
| JIS G4403 | C | Mn | P | S | Si | Cr | V | Mo | W | Co | ||||||||
| SKH55 | 0.87 | 0.95 | … | 0.40 | 0.03 | 0.03 | … | 0.45 | 3.80 | 4.50 | 1.70 | 2.10 | 4.70 | 5.20 | 5.90 | 6.70 | 4.50 | 5.00 |
| Temperature °C / °F | |||||||
| 20 / 70 | 400 / 750 | 600 / 1110 | |||||
| Density | Kg/m³ lbs/in³ | 8150 .294 | 8050 .290 | 7990 .228 | |||
| Modulus of Elasticity | kN/mm³² psi | 230 34 · 10 6 | 205 31 · 10 6 | 184 27 · 10 6 | |||
| Coefficient of Thermanl expansion from 20°C / 70°F | per °C per °F | – | 11.6 · 10-6 6.4 · 10-6 | 11.9 · 10-6 6.6 · 10-6 | |||
| Thermal Conductivity | W/m °C Btu/sq. ft. h °F/in. | 24 166 | 28 194 | 27 187 | |||
| Specific Heat | J/kg °C Btu/lb °F | 420 0.10 | 510 0.12 | 600 0.14 | |||
| Country | USA | German | Japan |
| Standard | ASTM A600 | DIN EN ISO 4957 | JIS G4403 |
| Grades | M35 | 1.3243/HS6-5-2-5 | SKH55 |
| Thermal properties | Metric | Imperial |
| CTE, linear (@21 – 399°C / 69.8 – 750°F) | 11.4 μm/m°C | 6.33 μin/in°F |
| CTE, linear (@21 – 593°C /69.8 – 1100°F) | 11.5 μm/m°C | 6.39 μin/in°F |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Yes, High-Speed Steel M35 can be welded, but it requires careful control of heat and preheating. Post-weld heat treatment is often necessary to restore its hardness and performance.
Yes, High-Speed Steel M35 bars can be customized in terms of dimensions, shape, and surface finish. Machining and heat treatment processes can also be tailored to meet specific performance requirements.
You’ll find these bars widely used in drill bits, end mills, taps, reamers, gear cutters, saw blades, and various industrial machining tools, where high performance, durability, and heat resistance are crucial for precision cutting and extending tool life.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
