Phehlukwayo Metal, based in Cape Town, South Africa, is a reliable manufacturer and supplier of top-notch Incoloy 800/800H/800HT Bars and Rods. Known for their precision and quality, this company specializes in high-performance nickel-iron-chromium alloys that are built to endure extreme temperatures and resist corrosion. The Incoloy 800/800H/800HT Bars and Rods are crafted to comply with strict industrial and international standards, ensuring they provide exceptional strength, durability, and long-lasting reliability. They cater to various industries, including chemical processing, power generation, petrochemical, and marine sectors, offering materials that can handle thermal, mechanical, and corrosive challenges. Their products consistently perform well in critical applications where safety, stability, and efficiency are paramount.
The Incoloy 800/800H/800HT Bars and Rods mainly consist of nickel (30–45%), iron (at least 39.5%), and chromium (19–23%), along with trace amounts of carbon, manganese, silicon, and titanium. This alloy boasts impressive mechanical properties, such as high tensile strength, excellent creep and stress-rupture resistance, and remarkable fatigue performance at elevated temperatures. It also shows outstanding resistance to oxidation, carburization, and corrosion in both oxidizing and reducing environments. The Incoloy 800/800H/800HT Bars and Rods maintain their structural integrity even under extreme thermal and chemical conditions, making them perfect for demanding applications that require long-term reliability, durability, and performance.
Incoloy 800/800H/800HT Bars Specifications
Specification : ASTM B166, A479 / ASME SB166, SA479
Dimension Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI

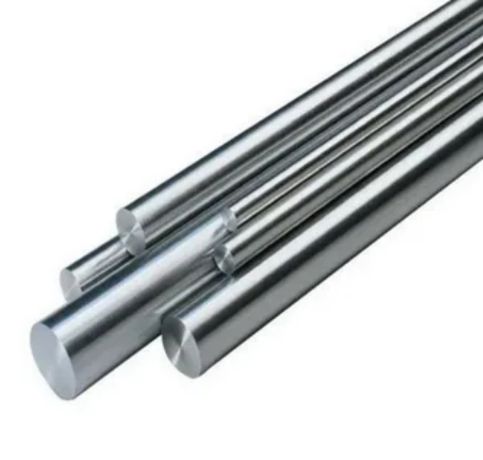

Incoloy Round Bars: Outside Diameter in the range of 4mm to 500mm

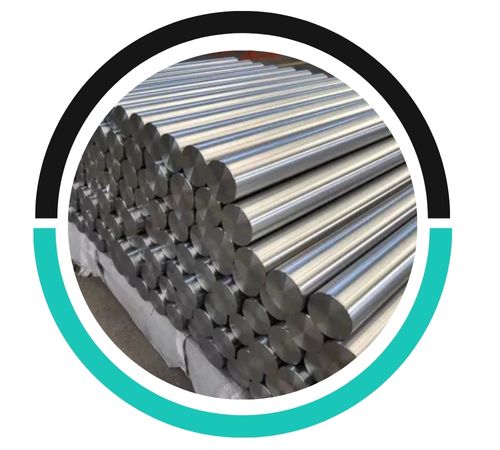

Incoloy Bright Bars : Outside Diameter in the range of 4mm to 200mm

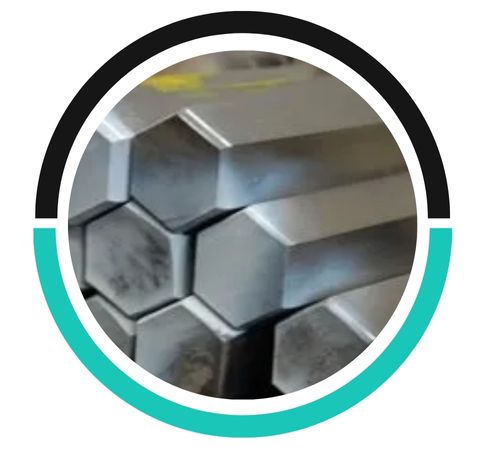

Incoloy Hex Bars : 4mm – 101.6mm

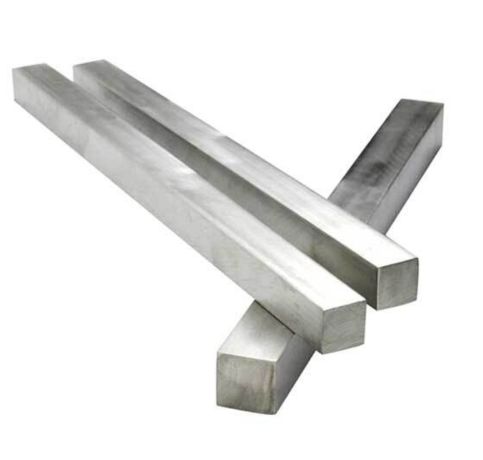

Incoloy Square Bars : 3mm – 100mm

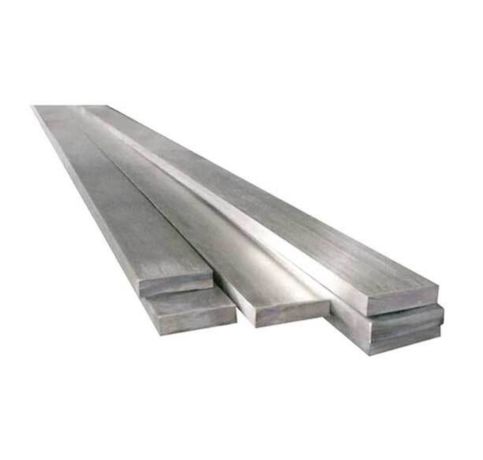

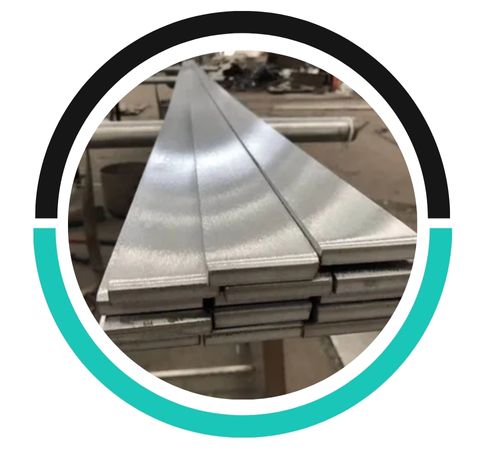

Incoloy Flat Bars : 1/2″ to 10″ in thickness range of 1.6mm to 150mm, Custom Size Stainless Steel Flats available

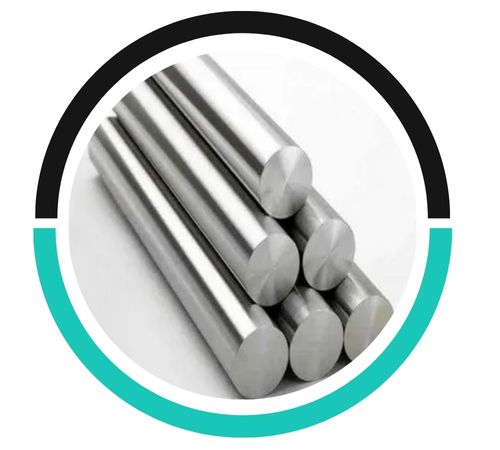

Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Length : 1 to 6 Meters, Custom Cut Lengths
Form : Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | BS | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | ЭИ670 | Z8NC32-21 | NCF 800 | NA 15 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | ЭИ670 | Z8NC33-21 | NCF 800H | NA 15(H) | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | ЭИ670 | – | NCF 800HT | NA 15(HT) | X8NiCrAlTi32-21 | XH32T |
| Incoloy 800 Round bar | ||||||||
|---|---|---|---|---|---|---|---|---|
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 | ||||||
Yes, Incoloy 800, 800H, and 800HT bars and rods are highly corrosion-resistant, particularly to oxidation and carburization at high temperatures. They are commonly used in harsh environments such as chemical processing and power generation due to their excellent resistance to sulfur and other corrosive elements.
Yes, Incoloy 800, 800H, and 800HT bars and rods can be customized in size and length to meet specific industrial requirements. They are available in various diameters, lengths, and finishes to suit different applications.
Incoloy 800, 800H, and 800HT bars and rods perform exceptionally well in high-temperature environments, maintaining their strength and resistance to oxidation and carburization. They are ideal for applications in furnaces, heat exchangers, and gas turbines.
Incoloy 800/800H/800HT Bars and Rods are a go-to choice in various industries that need materials resistant to heat and corrosion. In the chemical and petrochemical sectors, you’ll find them in heat exchangers, reactors, piping, and furnaces that deal with high temperatures and harsh chemicals. The power generation industry also relies on these materials for boiler components, superheaters, and turbine parts. When it comes to marine applications, they’re used in seawater equipment and offshore structures. Thanks to their impressive strength, thermal stability, and resistance to oxidation and stress corrosion cracking, Incoloy 800/800H/800HT Bars and Rods are crucial for applications where durability, safety, and long-term efficiency are absolutely essential.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
