Phehlukwayo Metal, a reputable manufacturer and supplier located in Cape Town, South Africa, specializes in top-notch Incoloy 800H Forgings, celebrated for their remarkable high-temperature strength and resistance to corrosion. Designed to comply with international industrial standards, these forgings are perfect for applications that require outstanding structural stability in extreme conditions. Phehlukwayo Metal is dedicated to precision manufacturing, durability, and consistent quality in every product, serving industries like chemical processing, power generation, and heat treatment. With a strong focus on innovation and customer satisfaction, the company delivers dependable Incoloy 800H Forgings that excel in tough environments.
Incoloy 800H Forgings primarily consist of nickel (30–35%), chromium (19–23%), and iron, with carefully controlled amounts of carbon, aluminum, and titanium to boost creep and rupture strength. These forgings showcase impressive mechanical properties, including high tensile strength, excellent oxidation resistance, and stability when exposed to high temperatures for extended periods. Their well-balanced composition helps them maintain mechanical integrity while resisting carburization and nitridation in harsh environments.
Specifications ASTM B564 / ASME SB564, AMS 5766
Flat bar blocks up to 27″ width and 15,000 lbs.
Cylinders and sleeves up to 50″ maximum O.D. and 65″ maximum length
Discs and hubs up to 50″ diameter and 20,000 lbs.
Rolled, hand forged or mandrel forged rings up to 84″ maximum O.D. and 40″ maximum length
Rounds, shafts and step shafts up to 144″ maximum length and 20,000 lbs.
| Grade | Ni | Fe | Cr | Cu | Ti | Al | C | Mn | S | Si |
| Alloy 800H | 30.0-35.0 | 39.5 min | 19.0-23.0 | .75 max | .15-.60 | .15-.60 | .05-.10 max | 1.5 max | .015 max | 1.0 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.94 g/cm3 | 1350-1400 ℃ | Psi – 75,000 , MPa -520 | Psi – 30,000 , MPa – 205 | 30 – 35 % |
| Density | 0.287 lb/in3 / 7.94 g/cm3 |
| Melting Point | 2475 – 2525 °F/ 1357 – 1385 °C |
| Specific Heat @ 70°F | 0.11 Btu/lb•°F |
| Permeability @ 70°F Annealed | 1.014 (200 Oersted) |
| Curie Temperature | -115 °C/ -175 °F |
| Elastic Modulus | 28.50 X 106 psi |
| Electrical Resistivity @ 70°F | 595 ohm•circ mil/ft |
| Annealling Incoloy 800 | 983 – 1038 °C / 1800 – 1900 °F |
| Annealling Incoloy 800H / Ht | 1147 – 1177°C / 2100 – 2150 °F |
| Quench | Rapid Air / Water |
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST | OR |
| Incoloy 800H | N08810 | 1.4958 | Z8NC32-21 | X10NiCrAlTi32-20 | NCF 800H | NA 15(H) | ЭИ670 | XH32T |

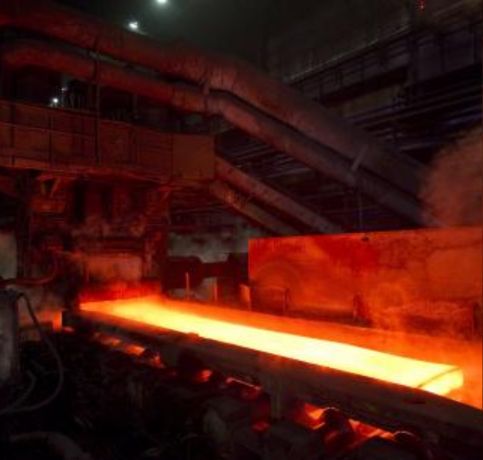

The ideal temperature range for forging Incoloy 800H is between 2100°F and 2250°F (1149°C to 1232°C). This range ensures optimal workability and preserves the material’s mechanical properties.
Post-forging operations for Incoloy 800H typically include annealing to relieve stress and enhance ductility, followed by heat treatment to achieve desired mechanical properties. Surface cleaning and inspection for defects are also essential to ensure quality.
To determine if Incoloy 800H Forgings meet your specific needs, review material specifications, including composition and mechanical properties, and consult with suppliers for customized testing or performance data. Additionally, consider your application's temperature, corrosion, and mechanical requirements.
Incoloy 800H Forgings find extensive use in sectors such as petrochemical, power generation, heat exchangers, and gas processing. They are particularly suited for furnace components, pressure vessels, heat-treating equipment, and superheater tubes, thanks to their high-temperature strength and oxidation resistance. The alloy’s capability to endure thermal cycling and corrosive atmospheres makes it ideal for industrial furnaces, steam reformers, and chemical processing plants. These characteristics ensure a long service life and reliable performance, even under the most extreme operational conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
