Phehlukwayo Metal, located in Cape Town, South Africa, stands out as a top-notch manufacturer and supplier of high-quality Incoloy 925 Bars and Rods. Renowned for providing materials that perform exceptionally well, the company offers Incoloy 925 Bars and Rods that boast remarkable strength, corrosion resistance, and durability, even in the toughest environments. These products are meticulously engineered to adhere to the highest industry standards, making them perfect for demanding applications in the oil, gas, and marine sectors. With a focus on precision manufacturing and rigorous quality control, Phehlukwayo Metal guarantees products that promise reliability, a long service life, and outstanding performance under extreme conditions.
Incoloy 925 Bars and Rods are primarily made up of nickel, iron, and chromium, with added molybdenum, copper, and titanium to boost their strength and corrosion resistance. They showcase excellent mechanical properties, including high tensile and yield strength, along with impressive toughness and fatigue resistance. These bars and rods maintain their mechanical integrity even in high-pressure and high-temperature settings, providing excellent resistance to stress-corrosion cracking, pitting, and crevice corrosion in harsh chemical and marine environments.
| Standards | ASTM B805, ASME SB 805 |
|---|---|
| Specifications | DIN, EN, ASTM, JIS, ASME, BS, AISI |

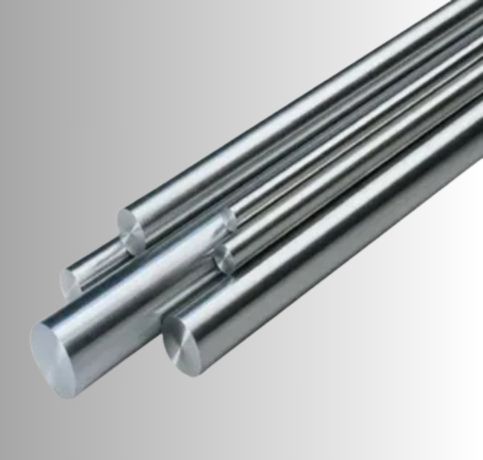

| 925 Incoloy Round Bars size | Diameter: 3-~800mm |
| Incoloy 925 Flat Bars size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Incoloy 925 Angle Bars size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Incoloy 925 Channel Bars | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Alloy 925 Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Incoloy 925 Billet Size | 1/2 to 495mm Diameter |

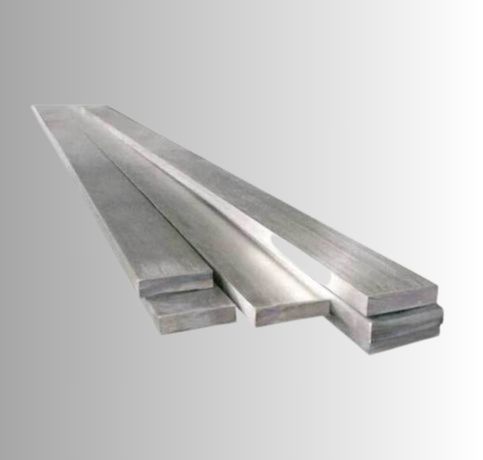

| Incoloy 925 Rectangle Bar Size | 33 x 30mm to 295 x 1066mm |

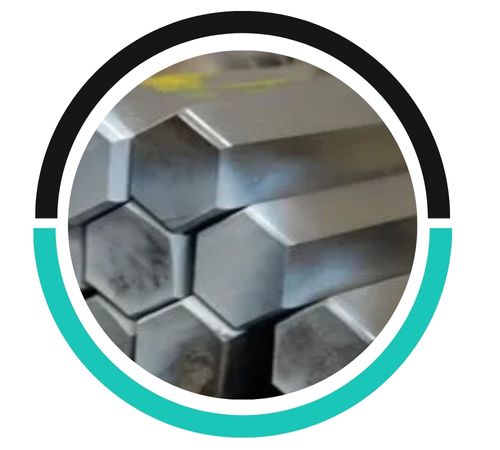

| Incoloy 925 Hex Bar size | 2-100mm A/F |
| Incoloy 925 Hollow Bars | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Diameter | 20mm, 30mm, 50mm, 80mm, 100mm, 150mm, 200mm, 500mm |
| Length | 1m-12m or as required |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | hot rolled annealed, peeled, Bright, hot-worked and cold-worked rod and bar, centreless ground, Centreless Ground and Black, Polish, Cold Rolled (CR), hot rolled ( R), smooth turned, Cold (bright) drawn, Grinding, slit rolled edge, Rough Turned. |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Cold Drawn, Hot Rolled, Forged Round Bars, Cold Rolled, Rod |
| Processing | Bars cutting to 650mm |
| Form | Rod, Round, Channel Bars, T-Bars, Flat Bars, Precision Ground Bars, Blocks, Square, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bars, Ingot, Billet, I/H Bars, Forging etc. |
| Grade | Ni | Cr | Fe | Si | Mo | Cu | Mn | C | S | Al |
| Incoloy 925 | 42 – 46 | 19.55 – 22.5 | 22 min | 0.5 max | 2.5 – 3.5 | 1.5 – 3.0 | 1.0 max | 0.03 max | 0.03 max | 0.1 – 0.5 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.14 g/cm3 | 1343°C | 650 | 300 | 30 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Incoloy 925 | – | N09925 |
Yes, Incoloy 925 rods are highly corrosion-resistant, particularly in aggressive environments such as acidic and chloride-containing media. Their composition includes nickel, iron, and chromium, enhancing their resistance to corrosion, pitting, and stress corrosion cracking.
Yes, Incoloy 925 bars can be customized in size and length to meet specific requirements. They are available in various dimensions and can be tailored for different industrial applications.
Incoloy 925 bars perform exceptionally well in high-temperature environments, maintaining strength and stability. Their high nickel and chromium content provides excellent resistance to oxidation and carburization at elevated temperatures.
Incoloy 925 Bars and Rods find extensive use in industries like oil and gas production, petrochemical processing, and marine engineering. They are perfect for crafting components such as shafts, fasteners, tubing hangers, and valves that need to perform in corrosive or high-stress situations. Their exceptional resistance to sour-gas environments makes them ideal for both downhole and surface equipment. Additionally, these bars and rods are employed in chemical processing plants, desalination systems, and power generation equipment, where strength, reliability, and corrosion resistance are crucial for long-term performance and operational safety.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
