Phehlukwayo Metal, located in Cape Town, South Africa, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Inconel 617 Bars and Rods. These products are designed for industries that require outstanding performance in extreme conditions. Known for their dedication to precision, durability, and reliability, Phehlukwayo Metal guarantees that every Inconel 617 item meets international standards. They cater to a wide range of clients in sectors like aerospace, chemical processing, and power generation, providing tailored solutions to fit specific operational needs. With a strong emphasis on excellence and consistent quality, Phehlukwayo Metal is a standout choice for corrosion- and heat-resistant nickel-chromium-cobalt alloy products in the area.
Inconel 617 Bars and Rods are primarily made up of nickel (about 52–67%), chromium (20–22%), cobalt (11–13%), and molybdenum (8–10%), along with small amounts of aluminum and titanium. This unique blend gives them remarkable high-temperature strength, oxidation resistance, and corrosion resistance. Mechanically, these bars boast a tensile strength of around 1100–1250 MPa and a yield strength of 550–750 MPa at room temperature. They maintain their structural integrity even at elevated temperatures of up to 1093°C (2000°F) and exhibit excellent creep-rupture strength, making them perfect for applications that require long-term thermal stability and resistance to scaling or carburization.
| Standards | ASTM B166, ASME SB 166, AMS 5887 |
|---|---|
| Specifications | DIN, EN, ASTM, JIS, ASME, BS, AISI |

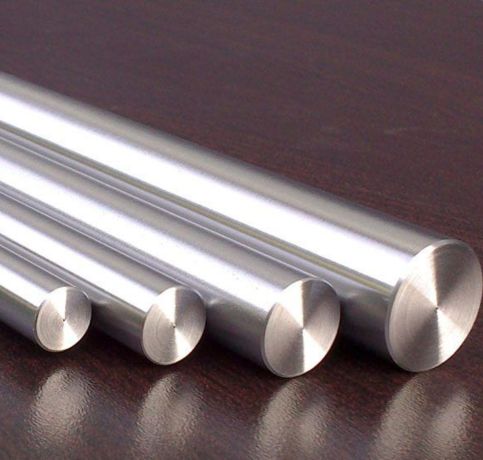

| 617 Inconel Round Bars size | Diameter: 3-~800mm |

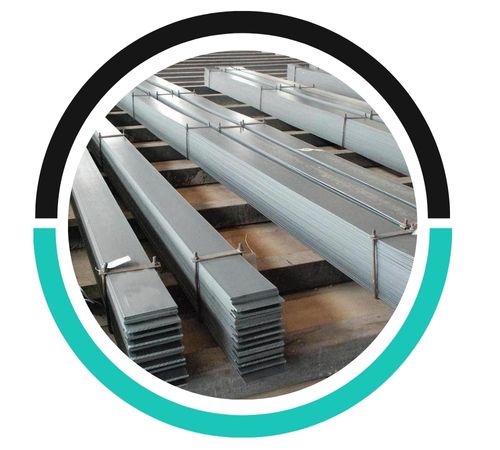

| Inconel 617 Flat Bars size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Inconel 617 Angle Bars size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Inconel 617 Channel Bars | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Alloy 617 Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Inconel 617 Billet Size | 1/2 to 495mm Diameter |

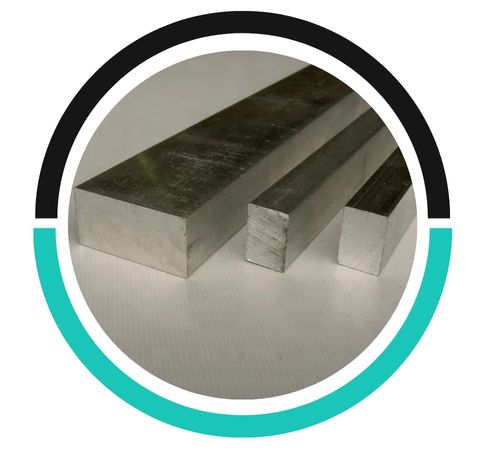

| Inconel 617 Rectangle Bar Size | 33 x 30mm to 295 x 1066mm |

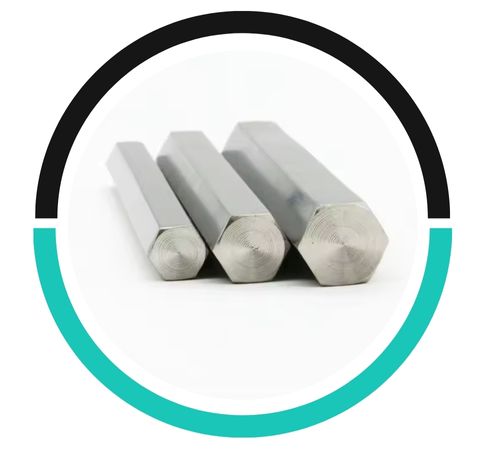

| Inconel 617 Hex Bar size | 2-100mm A/F |
| Inconel 617 Hollow Bars | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Diameter | 20mm, 30mm, 50mm, 80mm, 100mm, 150mm, 200mm, 500mm |
| Length | 1m-12m or as required |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |

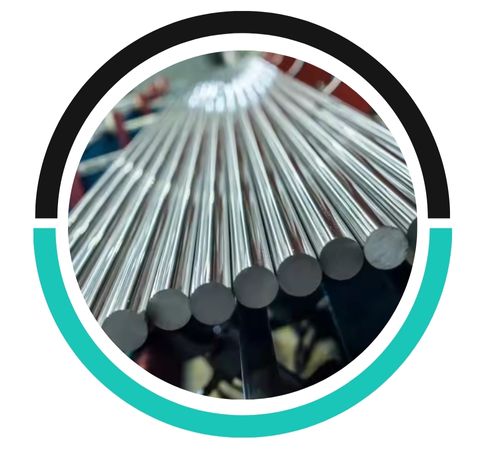

| Finish | hot rolled annealed, peeled, Bright, hot-worked and cold-worked rod and bar, centreless ground, Centreless Ground and Black, Polish, Cold Rolled (CR), hot rolled ( R), smooth turned, Cold (bright) drawn, Grinding, slit rolled edge, Rough Turned. |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Cold Drawn, Hot Rolled, Forged Round Bars, Cold Rolled, Rod |
| Processing | Bars cutting to 650mm |

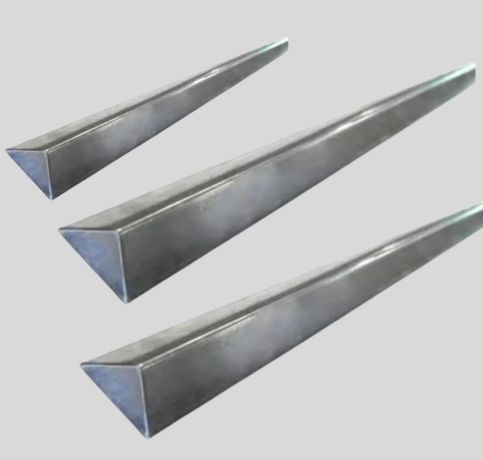

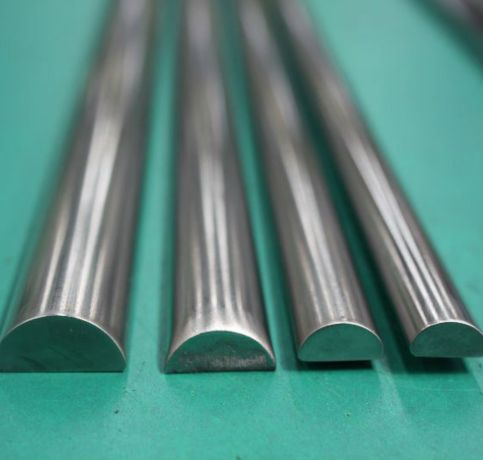

| Form | Rod, Round, Channel Bars, T-Bars, Flat Bars, Precision Ground Bars, Blocks, Square, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bars, Ingot, Billet, I/H Bars, Forging etc. |
| STANDARD | WERKSTOFF NR. | UNS |
| Inconel 617 | 2.4663 | N06617 |
| Grade | Ni | Cr | Fe | C | Mn | S | Mo | Si | Co |
| Inconel 617 | 48.85 – 62 | 20 – 24.0 | Balance | ≤ 0.15 | ≤ 1 | – | 8 – 10 | ≤ 1 | 10-15 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.3g/cm³ | 1363°C | ≥ 485 MPa | ≥ 275 MPa | 25 % |
Yes, Inconel 617 Bars/Rods are designed to perform exceptionally well in high-temperature environments up to 980°C.
Yes, they can be tailored in terms of size, dimensions, and specifications to meet specific industrial requirements.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@phehlukwayometal.co.za
Inconel 617 Bars and Rods find their place in high-temperature settings like gas turbines, furnace components, heat exchangers, and chemical processing equipment. Their outstanding oxidation and corrosion resistance make them a great fit for petrochemical plants, nuclear reactors, and aerospace engine components. Plus, they are used in situations that involve extreme thermal cycling or exposure to harsh chemicals, ensuring reliable performance and a long service life. Their versatility, combined with impressive mechanical strength and thermal stability, empowers engineers to design components that can withstand the toughest conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
