Phehlukwayo Metal, a reputable manufacturer and supplier located in Cape Town, South Africa, specializes in high-quality **Monel Forgings** that are designed to offer outstanding corrosion resistance, strength, and durability. Crafted using cutting-edge forging techniques, these products boast precise dimensions, a consistent structure, and dependable mechanical properties. Renowned for their remarkable performance in tough and corrosive settings, Monel Forgings are perfect for the marine, chemical, and petrochemical sectors. Phehlukwayo Metal guarantees that all products adhere to international standards, providing robust, high-performance solutions for applications that demand precision-engineered nickel-copper alloy components capable of enduring extreme conditions while ensuring long-lasting structural integrity in challenging industrial environments.
Monel Forgings primarily consist of around 63% nickel and 28–34% copper, along with small amounts of iron, manganese, and silicon to boost strength and corrosion resistance. This unique composition offers exceptional resistance to seawater, acids, and alkalis, all while maintaining impressive tensile strength and toughness. The material showcases a tensile strength of roughly 580–690 MPa, a yield strength of 250–380 MPa, and good ductility. Its uniform microstructure guarantees dimensional stability, reliable mechanical performance, and resistance to chemical attacks, making Monel Forgings ideal for critical marine, chemical, and high-performance industrial applications.
Specifications ASTM B564 / ASME SB564
Flat bar blocks up to 27″ width and 15,000 lbs.
Cylinders and sleeves up to 50″ maximum O.D. and 65″ maximum length
Discs and hubs up to 50″ diameter and 20,000 lbs.
Rolled, hand forged or mandrel forged rings up to 84″ maximum O.D. and 40″ maximum length
Rounds, shafts and step shafts up to 144″ maximum length and 20,000 lbs.
Grades Monel 400, Monel K500
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
The forging process for Monel typically takes several hours, depending on the size and complexity of the component. It involves heating, shaping, and cooling, with each stage carefully controlled to ensure quality.

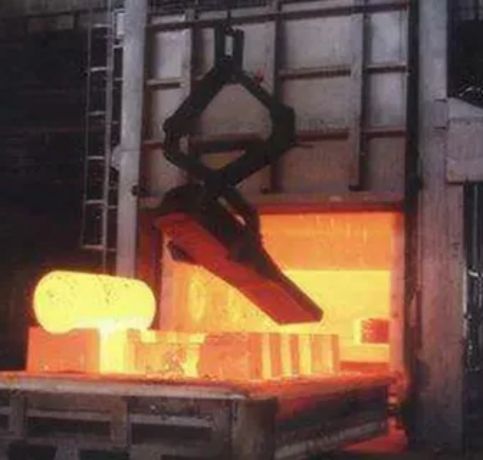

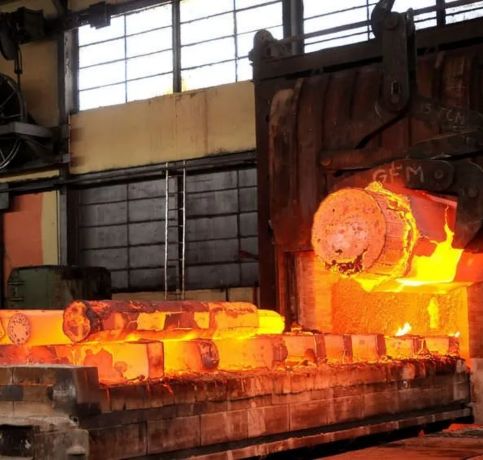

The most suitable forging techniques for Monel alloys include open-die and closed-die forging. These methods ensure precise shaping and maintain the material's strength and corrosion resistance during the process.
Monel Forgings find extensive use in situations that require high corrosion resistance, mechanical strength, and long-lasting reliability. They are often utilized in pump shafts, valves, seawater piping systems, marine hardware, and chemical processing equipment. This alloy is also well-suited for aerospace components, heat exchangers, and industrial machinery that face acidic or saline environments. Furthermore, Monel Forgings are employed in petrochemical plants, precision engineering components, and structural parts where corrosion resistance and toughness are essential.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
