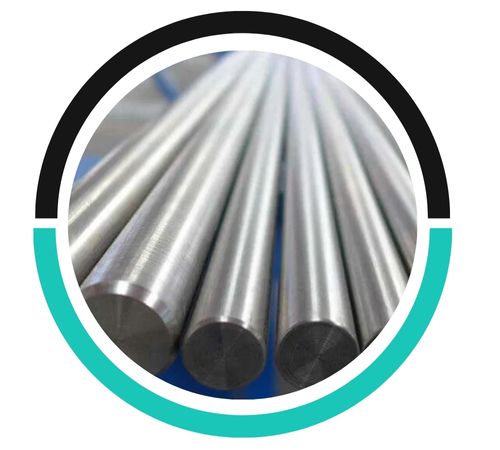

Phehlukwayo Metal, a top-notch manufacturer and supplier located in Cape Town, South Africa, specializes in high-quality Monel Round Bars that are celebrated for their exceptional corrosion resistance and impressive mechanical strength. Crafted with cutting-edge metallurgical techniques and rigorous quality control, these bars promise reliable performance even in the toughest and most corrosive environments. Phehlukwayo Metal ensures that their Monel Round Bars come with precise dimensions and a superior surface finish, making them perfect for critical applications across marine, chemical processing, aerospace, and petrochemical industries. Their durability and dependability make them the go-to choice for components that need to endure harsh conditions while keeping their structural integrity intact over time.
Monel Round Bars are primarily made up of about 63% nickel and 28–34% copper, with small amounts of iron, manganese, and carbon added to boost strength and corrosion resistance. They showcase a tensile strength that ranges from 550 to 700 MPa, yield strength between 240 and 380 MPa, and an elongation of 30–50%. This alloy is known for its remarkable resistance to seawater, acids, alkalis, and oxidizing agents, maintaining mechanical stability across a wide temperature range, which makes it ideal for high-performance industrial and structural applications.
| Specifications | : | ASTM B164 / ASTM SB164 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Size | : | 5 mm To 500 mm |
| Diameter | : | 0.1 mm to 100 mm |
| Length | : | 100 mm To 3000 mm Long & Above |
| Finish | : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Tolerance | : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Form | : | Round |
| Designation | C% | Co% | Cr% | Mo% | Ni% | V% | W% | Ai% | Cu% | Nb/Cb Ta% | Ti% | Fe% | Sonstige Autres-Other % |
| – | 0.12 | – | – | – | 65.0 | – | – | – | 32.0 | – | – | 1.5 | Mn 1.0 |
| – | 0.10 | – | – | – | 43.0 | – | – | – | 53.0 | – | – | 0.75 | Si 0.25; Mn 2.25 |
| – | 0.15 | – | 52.0-57.0 | – | – | 0.05 | rest/bal | – | – | 0.50 | Mn 0.10; Si 0.10;S o.024 | ||
| – | 0.10 | – | – | – | 63.0-17.0 | – | – | 2.5-3.5 | rest/bal | – | 0.50 | 2.0 | Mn 1.5;Si 0.5; S 0.010 |
| – | 0.13 | – | – | – | 64.0 | – | – | 2.8 | 30.0 | – | 0.6 | 1.0 | Mn 0.8 |
| – | 0.15 | – | – | – | 66.0 | – | – | – | 31.0 | – | – | 1.2 | Mn 1.0; S 0.04 |
| Element | Monel |
| Density | 8.8 g/cm3 |
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | Psi – 80,000 , MPa – 550 |
| Yield Strength (0.2%Offset) | Psi – 35,000 , MPa – 240 |
| Elongation | 40 % |
| Size | kilogram / Meter | kilogram / Foot | Size | kilogram / Meter | kilogram / Foot | Size | kilogram / Meter | kilogram / Foot |
|---|---|---|---|---|---|---|---|---|
| 1/8″ | 0.062 | 0.019 | 22 millimeter | 2.979 | 0.908 | 3 to 1/4″ | 41.996 | 12.800 |
| 3 millimeter | 0.055 | 0.017 | 20 millimeter | 2.470 | 0.753 | 3″ | 35.762 | 10.900 |
| 4 millimeter | 0.098 | 0.030 | 24 millimeter | 3.543 | 1.080 | 3 to 3/4″ | 55.780 | 17.001 |
| 5/32″ | 0.095 | 0.029 | 7/8″ | 3.038 | 0.926 | 3 to 1/2″ | 48.772 | 14.850 |
| 5 millimeter | 0.154 | 0.047 | 1″ | 3.970 | 1.210 | 4 to 1/4″ | 72.249 | 21.908 |
| 3/16″ | 0.141 | 0.043 | 25 millimeter | 3.871 | 1.180 | 4″ | 63.340 | 19.306 |
| 6 millimeter | 0.223 | 0.068 | 27 millimeter | 4.490 | 1.368 | 4 to 3/4″ | 90.249 | 27.366 |
| 7/32″ | 0.190 | 0.058 | 26 millimeter | 4.170 | 1.271 | 4 to 1/2″ | 80.340 | 24.4487 |
| 7 millimeter | 0.298 | 0.091 | 30 millimeter | 5.548 | 1.691 | 5 to 1/2″ | 121.000 | 36.690 |
| 1/4″ | 0.249 | 0.076 | 1 to 1/8″ | 5.033 | 1.534 | 5″ | 99.940 | 30.461 |
| 8 millimeter | 0.398 | 0.120 | 32 millimeter | 6.314 | 1.894 | 6 to 1/2″ | 167.630 | 51.093 |
| 5/16″ | 0.387 | 0.118 | 1 to 1/4″ | 6.349 | 1.924 | 6″ | 143.900 | 43.860 |
| 3/8″ | 0.557 | 0.170 | 35 millimeter | 7.553 | 2.390 | 7 to 1/2″ | 225.000 | 68.226 |
| 9 millimeter | 0.498 | 0.152 | 1 to 3/8″ | 7.550 | 2.303 | 7″ | 196.000 | 59.432 |
| 11 millimeter | 0.748 | 0.228 | 38 millimeter | 8.903 | 2.792 | 10″ | 397.140 | 121.048 |
| 10 millimeter | 0.620 | 0.189 | 36 millimeter | 7.999 | 2.438 | 8″ | 254.55 | 77.586 |
| 12 millimeter | 0.889 | 0.271 | 40 millimeter | 9.872 | 3.009 | |||
| 7/16″ | 0.761 | 0.232 | 1 to 1/2″ | 8.951 | 2.715 | |||
| 13 millimeter | 1.043 | 0.318 | 1 to 3/4″ | 12.179 | 3.712 | |||
| 1/2″ | 0.994 | 0.303 | 1 to 5/8″ | 10.449 | 3.200 | |||
| 9/16″ | 1.256 | 0.383 | 1 to 7/8″ | 13.977 | 4.260 | |||
| 14 millimeter | 1.207 | 0.368 | 45 millimeter | 12.555 | 3.807 | |||
| 5/8″ | 1.551 | 0.473 | 50 millimeter | 15.414 | 4.698 | |||
| 15 millimeter | 1.391 | 0.424 | 48 millimeter | 14.205 | 4.330 | |||
| 17 millimeter | 1.791 | 0.543 | 2 to 1/8″ | 17.963 | 5.475 | |||
| 16 millimeter | 1.578 | 0.481 | 2″ | 15.906 | 4.848 | |||
| 18 millimeter | 2.001 | 0.610 | 60 millimeter | 22.205 | 6.768 | |||
| 11/16″ | 1.880 | 0.573 | 2 to 1/4″ | 20.128 | 6.135 | |||
| 3/4″ | 2.237 | 0.682 | 2 to 3/8″ | 22.435 | 6.838 | |||
| 2 to 1/2″ | 24.856 | 7.576 | ||||||
| 2 to 5/8″ | 27.409 | 8.354 | ||||||
| 2 to 3/4″ | 30.083 | 9.169 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@phehlukwayometal.co.za
Monel Round Bars are widely used in marine, chemical processing, and aerospace industries for components that require excellent corrosion resistance and high strength in extreme environments.
Yes, Monel Round Bars can be heat treated to improve their mechanical properties, such as strength and hardness, making them suitable for high-performance applications.
Monel Round Bars find extensive use in industries where high corrosion resistance and mechanical strength are essential. They are perfect for crafting pump shafts, valves, fasteners, and marine hardware. In chemical and petrochemical facilities, they are utilized in heat exchangers, piping systems, and reactor components. The aerospace and oil and gas industries also rely on Monel Round Bars for structural components that face extreme conditions. Their durability, toughness, and resistance to both oxidizing and reducing environments make them suitable for long-lasting, high-performance applications in demanding operational settings.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
