Phehlukwayo Metal, a reputable manufacturer and supplier located in Cape Town, South Africa, specializes in high-quality **Nickel Alloy Bright Bars** that are designed for exceptional corrosion resistance, high-temperature performance, and impressive mechanical strength. Crafted using cutting-edge precision techniques, these bright bars boast a smooth surface finish, precise dimensions, and consistent material properties. Renowned for their outstanding oxidation resistance, thermal stability, and durability, Nickel Alloy Bright Bars are perfect for industries like aerospace, chemical processing, and marine applications. Phehlukwayo Metal guarantees that all products adhere to international standards, providing reliable, long-lasting, and high-performance solutions for projects that demand precision-engineered nickel alloy components with top-notch surface quality and performance.
These Nickel Alloy Bright Bars primarily consist of nickel, often blended with chromium, molybdenum, and iron, depending on the specific alloy grade. This unique composition offers remarkable resistance to corrosion in acidic and chloride-rich environments, along with high tensile strength and good toughness. The material showcases a tensile strength ranging from approximately 550 to 850 MPa, a yield strength of 250 to 450 MPa, and commendable ductility. Its uniform microstructure ensures dimensional stability, high-temperature performance, and dependable mechanical properties, making Nickel Alloy Bright Bars ideal for critical industrial applications that require durability and performance in extreme conditions.
| Grade | Nickel Alloy – Pure Nickel |
|---|---|
| Specification | Nickel Bar Cold Finished : B160, SB160 400: B164, SB164, QQ-N-281 405: B164, SB164, QQ-N-281, ASTM B160 |
| Standard | ASTM, ASME, API, GB, AISI, DIN, EN, SUS, UNS |
| Round bar size | Diameter: 3-~800mm |

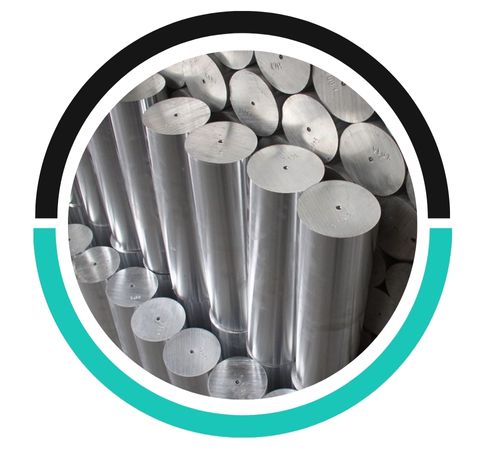

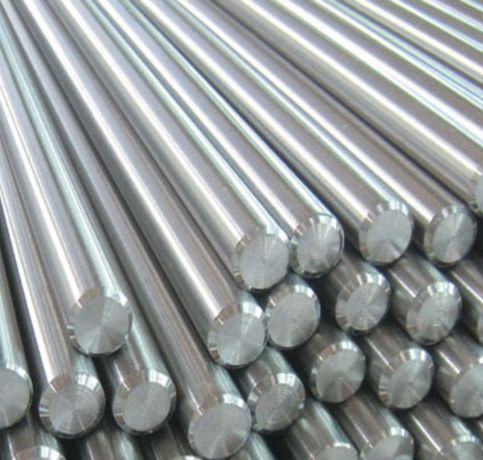

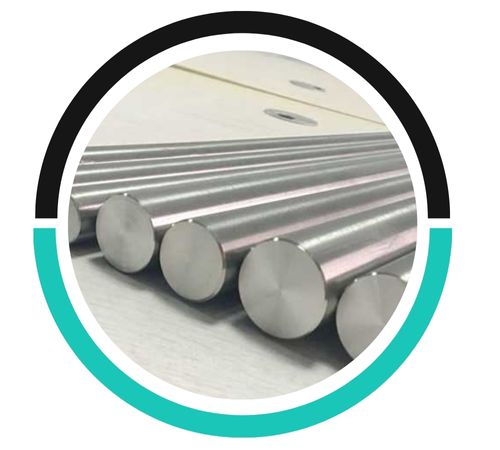

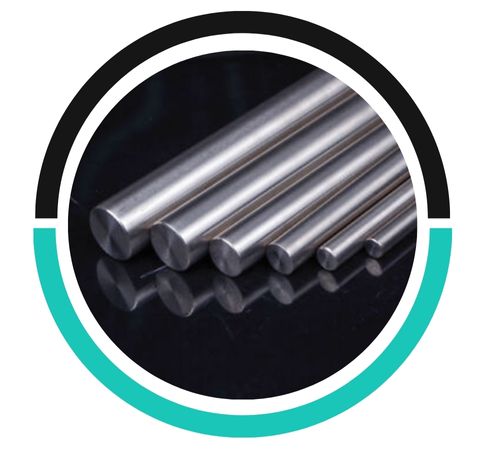

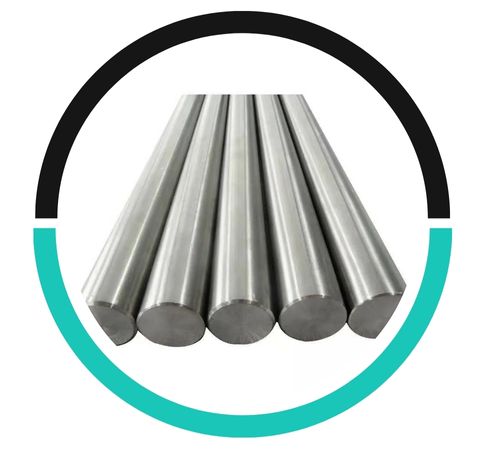

| Round Bar Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |

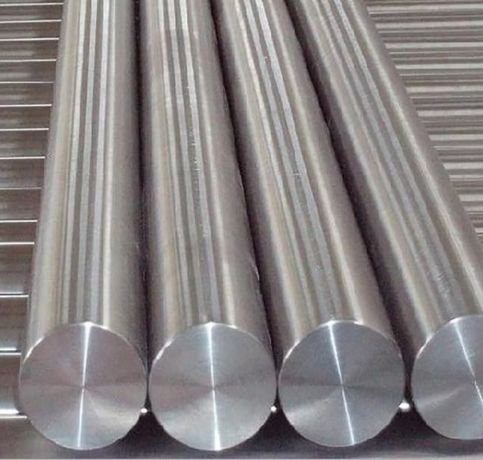

| Round Bar Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |

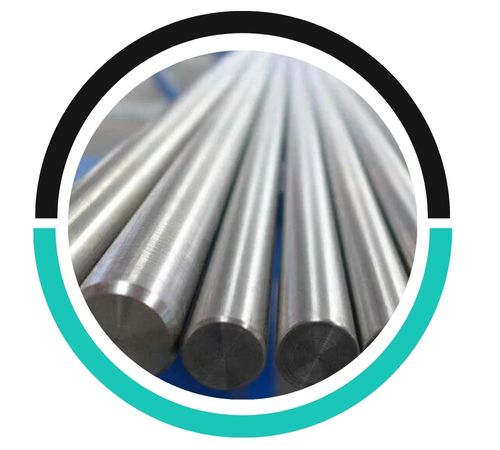

| Condition | Hardened & tempered, annealed |

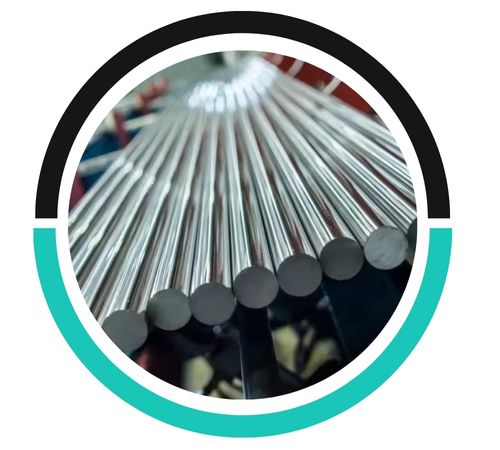

| Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Processing | Bar cutting to 650mm |
| Ni | Fe | C | Mn | Si | Cu | Mg | Ti | S |
|---|---|---|---|---|---|---|---|---|
| 99.0 Min | 0.4 Max | 0.02 Max | 0.35 Max | 0.2 Max | 0.25 Max | 0.15 Max | 0.1 Max | 0.01 Max |
| 99.0 Min | 0.4 Max | 0.15 Max | 0.35 Max | 0.1 Max | 0.25 Max | – | – | 0.01 Max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.9 G/Cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| SIZE IN INCHES | LENGTH IN INCHES | WGHT./FT. |
|---|---|---|
| .500 | 120/216 | 0.749 |
| .750 | 120/216 | 1.686 |
| .875 | 120/216 | 2.295 |
| 1.250 | 120/216 | 4.683 |
| 1.375 | 120/216 | 5.666 |
| 1.500 | 120/316 | 6.743 |
| 1.750 | 120/216 | 9.179 |
| 2.000 | 120/216 | 11.988 |
| 2.250 | 120/216 | 15.173 |
| 2.500 | 120/216 | 18.732 |
| 2.750 | 120/216 | 22.665 |
| 2.875 | 120/216 | 24.773 |
| 3.000 | 120/216 | 26.974 |
| 3.250 | 120/216 | 31.657 |
| 3.500 | 120/216 | 36.714 |
Discover the benefits of Nickel Alloy Bright Bars, including high strength, corrosion resistance, durability, and versatility for industrial applications.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@phehlukwayometal.co.za
Nickel Alloy Bright Bars find extensive use in applications that demand high corrosion resistance, mechanical strength, and thermal stability. They are commonly utilized in chemical processing equipment, heat exchangers, pumps, valves, and marine components. This alloy is also well-suited for aerospace parts, high-temperature industrial machinery, and equipment in petrochemical plants that are exposed to oxidizing or corrosive environments. Furthermore, Nickel Alloy Bright Bars are employed in structural components, fabrication projects, and precision engineering tasks.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
