Phehlukwayo Metal, located in Cape Town, South Africa, stands out as a top manufacturer and supplier of high-quality stainless steel products, including Nitronic 40 Bars and Rods. These bars and rods are celebrated for their exceptional strength, wear resistance, and corrosion resistance, all crafted to meet the highest industry standards. By blending advanced metallurgy with precise manufacturing techniques, Phehlukwayo Metal delivers components that are both reliable and durable, perfect for tough environments. Nitronic 40 Bars and Rods are particularly prized in applications that demand excellent galling resistance and high toughness, making them a go-to choice for industries like aerospace, chemical processing, and marine engineering.
The composition of Nitronic 40 Bars and Rods includes iron, 17–20% chromium, 7–10% nickel, 4–6% manganese, and trace amounts of nitrogen to boost strength and corrosion resistance. This alloy showcases impressive mechanical properties, such as high tensile and yield strength, outstanding fatigue resistance, and remarkable toughness. It maintains its shape under stress and effectively resists galling and wear in sliding applications. Additionally, Nitronic 40 offers superior corrosion resistance in both oxidizing and reducing environments, making it a dependable option for demanding mechanical and structural uses.
| Grade | Nitronic alloy 40 Round Bar bars |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |

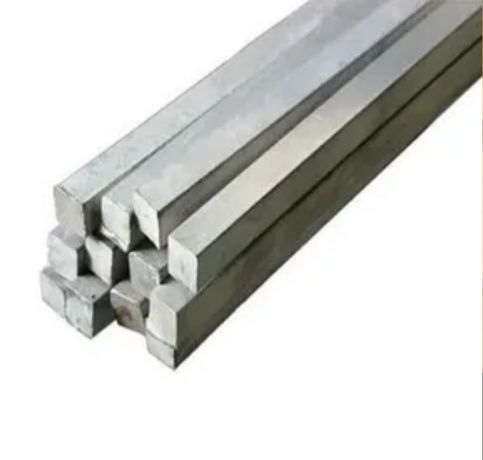

| Nitronic 40 Square bar size | 4 to 100mm |
| Nitronic Alloy 40 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| 40 Nitronic Alloy Hex Bar size | 2-100mm A/F |
| Nitronic 40 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Nitronic Alloy 40 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| 40 Nitronic Alloy Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 40 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nitronic Alloy 40 Section | 3.0 to 12.0mm thickness |
| 40 Nitronic Alloy Round bar size | Diameter: 3-~800mm |
| Nitronic 40 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic Alloy 40 Round Bar Standard Dimensions | Diameter / Height: |
| Nitronic 40 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 40 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| 40 Nitronic Alloy Technique | Nitronic 40 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 40 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 40 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 40 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 40 | 0.08 | 10.0 – 8.0 | 0.030 | 1.00 | 0.40 – 0.15 | 7.50 – 5.50 | 21.50 – 19.00 |
Ultimate Tensile, min. | Yield Strengtd (0.2% OS) min. | Elong. in 2 in., or 50mm, min., % | R/A | Hardness, max. | |
Min | 95 KSi | 48 KSi | 35 |
| |
Max | 241 Brinell | ||||
Min | 655 MPa | 330 MPa | |||
Max | 100 Rockwell B |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 40 Round Bars | S21900 | – |
Nitronic 40 bars are available in both rough and smooth finishes, depending on the manufacturing process and customer requirements. Smooth finishes are typical for applications needing better aesthetics or precision.
Nitronic 40 rods are available in sizes ranging from 3mm to 300mm diameter. Finishes include bright, polished, black, and rough-turned, catering to industrial and decorative applications.
Yes, Nitronic 40 bar can be welded using standard methods like TIG, MIG, and shielded metal arc welding. Preheating is not required, and post-weld annealing ensures optimal properties.
Nitronic 40 Bars and Rods find their place in various applications that require high wear and corrosion resistance, including pump shafts, fasteners, valves, and fittings. They are particularly suited for chemical processing equipment, marine components, and aerospace parts where resistance to galling, abrasion, and corrosion is essential. Furthermore, Nitronic 40 is utilized in heavy-duty industrial machinery, bearings, and precision mechanical components that face high stress and sliding contact. Phehlukwayo Metal is committed to ensuring that their Nitronic 40 Bars and Rods meet stringent quality standards, providing long-lasting, high-performance solutions for challenging industrial and engineering applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
