Phehlukwayo Metal, located in Cape Town, South Africa, stands out as a top manufacturer and supplier of premium stainless steel products, including Nitronic 50 Bars and Rods. These bars and rods are celebrated for their exceptional strength, resistance to corrosion, and impressive durability, all crafted to meet the highest industrial standards. By blending precise manufacturing with cutting-edge metallurgical techniques, Phehlukwayo Metal delivers components that are both reliable and long-lasting. Nitronic 50 Bars and Rods are especially prized for their ability to resist galling, wear, and harsh chemical environments, making them perfect for applications in aerospace, chemical processing, marine, and heavy machinery where outstanding performance and reliability are a must.
The composition of Nitronic 50 Bars and Rods includes iron, 20–22% chromium, 7–10% nickel, 3–4% manganese, along with trace elements of nitrogen, molybdenum, and copper to boost corrosion resistance and mechanical properties. This alloy showcases impressive mechanical characteristics, such as high tensile and yield strength, excellent fatigue resistance, and remarkable toughness. It maintains its shape under stress and performs consistently in high-load, high-wear situations. Additionally, Nitronic 50 offers superb resistance to pitting, crevice corrosion, and galling, making it a robust and low-maintenance choice for critical industrial and engineering components.
| Grade | Nitronic Alloy 50 / XM-19 (UNS No. S20910) |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |

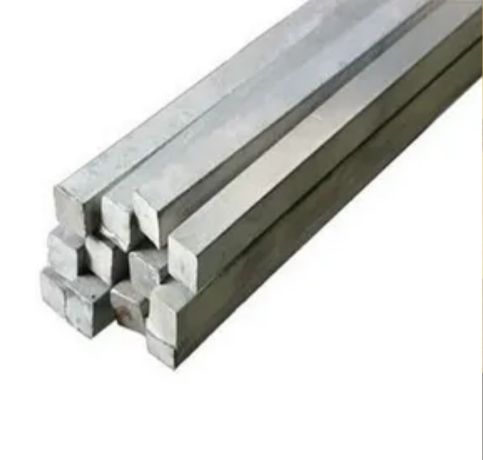

| Nitronic 50 Square bar size | 4 to 100mm |
| Nitronic Alloy 50 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Nitronic Alloy UNS S20910 Hex Bar size | 2-100mm A/F |
| Nitronic 50 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Nitronic Alloy 50 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Nitronic Alloy UNS S20910 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 50 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nitronic Alloy 50 Section | 3.0 to 12.0mm thickness |
| Nitronic Alloy UNS S20910 Round bar size | Diameter: 3-~800mm |
| Nitronic 50 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic Alloy 50 Round Bar Standard Dimensions | Diameter / Height: |
| Nitronic 50 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 50 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Nitronic Alloy UNS S20910 Technique | Nitronic 50 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 50 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 50 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 50 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 50 | .06 | .10 | 0.03 | 1.00 | 0.20 – 0.40 | 11.50 – 13.50 | 20.50 – 23.50 |
| Hardness MAX, Brinell | 241 |
| Ultimate Tensile Strength, ksi | 95 |
| 0.2% Yield Strength, ksi | 50 |
| Elongation, % | 35 |
| Reduction of Area, % | 55 |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 50 | S20910 | 1.3964 |
Nitronic 50 rods typically come in diameters ranging from 1/8" to 6" and lengths from 12" to 144". Custom sizes may also be available based on specific requirements.
Yes, Nitronic 50 bar can be welded using conventional methods like TIG and MIG welding. However, proper preheat and post-weld heat treatment are recommended for optimal results.
Nitronic 50 rods are available in various sizes, ranging from 1/8" to 12" in diameter. Finishes include mill, polished, and ground, depending on specific requirements and applications.
Nitronic 50 Bars and Rods are commonly utilized in scenarios that demand high strength, wear resistance, and corrosion protection. They are perfect for pump shafts, valve stems, fasteners, bearings, and sliding mechanical parts that face heavy loads and tough environments. Moreover, they are used in chemical processing facilities, marine equipment, aerospace components, and industrial machinery where durability, reliability, and minimal maintenance are crucial. Phehlukwayo Metal guarantees that their Nitronic 50 Bars and Rods adhere to strict quality standards, offering high-performance solutions that ensure long-term operational efficiency.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Phehlukwayo Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Cape Town, South Africa
