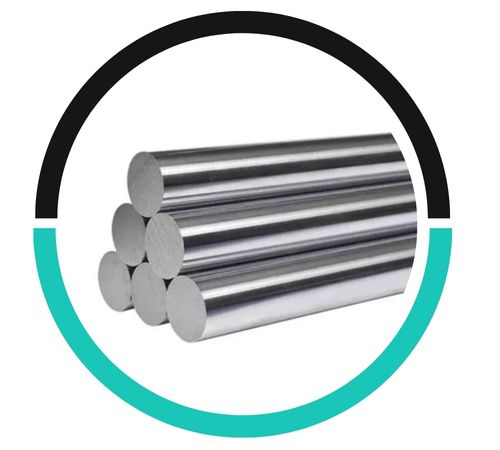

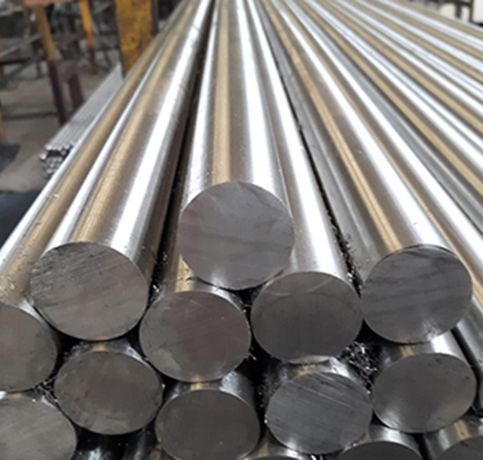

Phehlukwayo Metal, a reputable manufacturer and supplier located in Cape Town, South Africa, specializes in top-notch **OHNS Round Bars** that are crafted for outstanding hardness, wear resistance, and mechanical precision. Utilizing cutting-edge manufacturing techniques, these bars boast precise dimensions, a smooth surface finish, and consistent mechanical properties. Renowned for their excellent machinability and uniformity, OHNS Round Bars are perfect for tooling, engineering components, and precision machinery parts. Phehlukwayo Metal guarantees that all products adhere to international standards, providing durable, high-performance solutions. These bars are particularly well-suited for applications that demand high strength, durability, and precise dimensional accuracy across various industrial and engineering sectors.
OHNS Round Bars are made from high-carbon, high-chromium steel, primarily consisting of iron, carbon (around 0.8–1.2%), and chromium (0.8–1.5%), along with trace amounts of silicon and manganese. This specific composition results in remarkable hardness, wear resistance, and machinability. The material showcases a tensile strength of about 800–1000 MPa, yield strength of 600–800 MPa, and good toughness. Its uniform microstructure guarantees dimensional stability, consistent mechanical properties, and reliable performance even under heavy mechanical stress. OHNS Round Bars are ideal for applications that require high hardness, precision machining, and long-lasting durability in industrial and engineering settings.
| Grade | OHNS Round Bar |
|---|---|
| Specification | aaaaaaaaaaaaa |

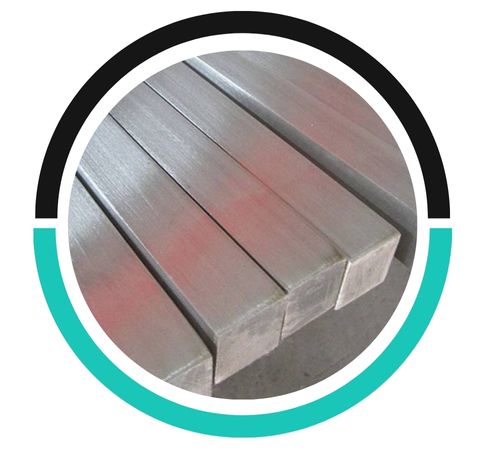

| OHNS Square bar size | 4 to 100mm |
| OHNS Steel Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |

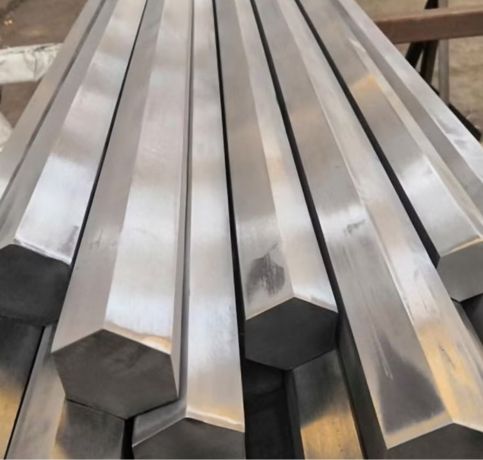

| OHNS High Speed Steel Hex Bar size | 2-100mm A/F |
| OHNS Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| OHNS Steel Rectangles Size | 33 x 30mm to 295 x 1066mm |
| OHNS High Speed Steel Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| OHNS Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| OHNS Steel Section | 3.0 to 12.0mm thickness |
| OHNS High Speed Steel Round bar size | Diameter: 3-~800mm |
| OHNS Billet Size | 1/2″ to 495mm Diameter |
| OHNS Steel Round Bar Standard Dimensions | Diameter / Height: |
| OHNS Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| OHNS Steel Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |

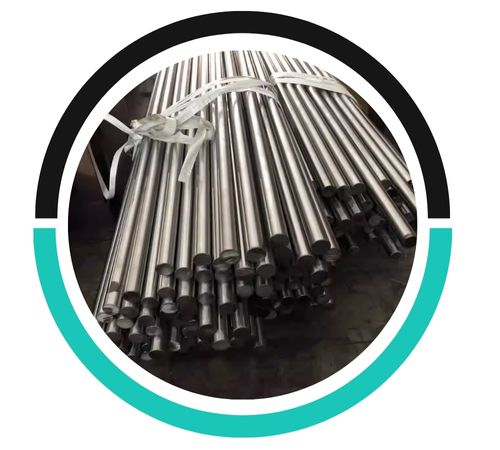

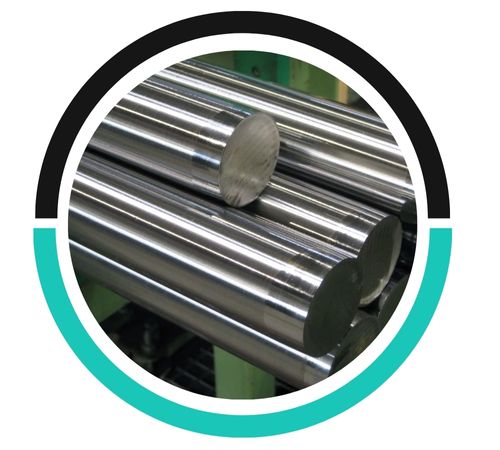

| OHNS High Speed Steel Technique | OHNS Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| OHNS Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | OHNS Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square Bar, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our OHNS Round bar conforms to NACE MR0175/ISO 15156 | |
| C | Si | Mn | P | S | Cr | W |
| 0.85-1.00 | 0.15-0.35 | 1.00-1.20 | 0.030max | 0.030max | 0.50-0.70 | 0.50-0.70 |
| Maximum Stress(N/mm²) | Yield Stress(N/mm²) | Elongation | Impact Strength (joule) | Hardness value (BHN) |
| 950 | 465 | 10% | 25 | 288 |
| STANDARDS | 100MnCrW4 | O1 | DIN 2510 | AISI O1 | AFNOR 90MWCV5 | JIS SKS3 |
OHNS (Oil Hardened Non-Shrinking) round bars are sized based on their diameter, typically ranging from 6 mm to 300 mm, with standard lengths ranging from 3 meters to 6 meters.
OHNS (Oil Hardened Non-Shrinking) rods are available in different grades, such as OHNS 1, OHNS 2, and OHNS 3, varying in hardness, toughness, and application suitability for manufacturing and toolmaking.
Yes, laser welding can be used for OHNS (Oil Hardened Non-Shrinking) bar, as it offers precision, minimal heat input, and controlled weld quality, making it suitable for hardenable tool steels.
These bars find extensive use in applications that demand high hardness, wear resistance, and mechanical precision. They’re commonly utilized in tool-making, dies, punches, and components of precision machinery. Additionally, OHNS Round Bars are perfect for engineering parts, industrial equipment, and components that face significant mechanical stress. They are also employed in automotive parts, heavy-duty machinery, and manufacturing fixtures where strength, durability, and dimensional accuracy are essential. Their combination of properties makes them a go-to choice for a wide range of demanding applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
