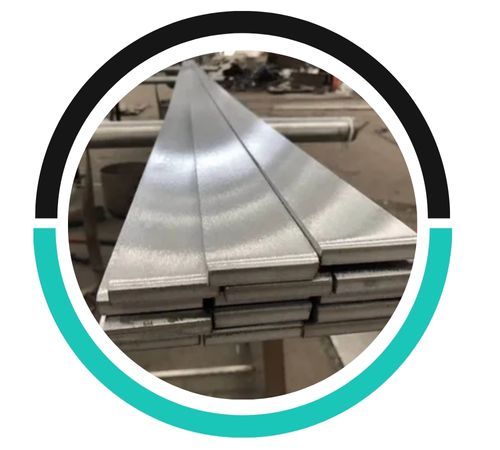

Phehlukwayo Metal, a reputable manufacturer and supplier located in Cape Town, South Africa, specializes in high-quality **Permalloy Bars and Rods** that are crafted for exceptional magnetic performance, corrosion resistance, and durability. Utilizing cutting-edge manufacturing techniques, these bars and rods boast precise dimensions, a smooth surface finish, and consistent mechanical and magnetic properties. With their outstanding permeability and low coercivity, Permalloy Bars and Rods are perfect for applications like transformers, magnetic shielding, and precision electronic components. Phehlukwayo Metal is committed to delivering products that adhere to international standards, ensuring that industries in need of advanced magnetic materials and precision-engineered components receive long-lasting, reliable, and high-performance solutions.
These Permalloy Bars and Rods are primarily made up of around 80% nickel and 20% iron, along with trace elements that enhance their magnetic and mechanical properties. This unique composition results in excellent magnetic permeability, low coercivity, and solid corrosion resistance. The material also showcases high tensile strength, good ductility, and dimensional stability, which guarantees dependable mechanical and magnetic performance even under operational stress. Thanks to their uniform microstructure and carefully controlled alloying, Permalloy Bars and Rods are well-suited for critical applications that demand precise magnetic responses, mechanical reliability, and long-term durability in challenging industrial and electronic settings.
| Standards : | — |
| Thickness : | Range from .008″ to .0125″ |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Form : | Bar |
| Tungsten Grades | HA 190 / HA 1925 / HA 195 / HE 390 / HE 3925 / HE 395 / HE 397 |
| C | P | S | Mn | Si | Ni | Cr | Co | Mo | Cu | Fe | |
| 1J46 | ≤0.03 | ≤0.02 | ≤0.02 | 0.6-1.1 | 0.15-0.30 | 45-46.5 | – | – | – | ≤0.2 | Balance |
| 1J50 | ≤0.03 | ≤0.02 | ≤0.02 | 0.3-0.6 | 0.15-0.30 | 49-50.5 | – | – | – | ≤0.2 | Balance |
| 1J79 | ≤0.03 | ≤0.02 | ≤0.02 | 0.6-1.1 | 0.30-0.50 | 78.5-81.5 | – | – | 3.8-4.1 | ≤0.2 | Balance |
| 1J85 | ≤0.03 | ≤0.02 | ≤0.02 | 0.3-0.6 | 0.15-0.30 | 79-81 | – | – | 4.8-5.2 | ≤0.2 | Balance |
| Grade | Resisitivity (μΩ•m) | Desinty (g/cm3) | CuriePoint℃ | HighSaturatedmagneto-strictioncoefficient λθ/10-6 | Brinellhardness HBS | σbTensile Strength MPa | σsYieldStrength MPa | Elongation (%)δ | ||||
| unan- nealed | an- nealed | unan- nealed | an- nealed | unan- nealed | an- nealed | unan- nealed | an- nealed | |||||
| 1J46 | 0.45 | 8.2 | 400 | 25 | 170 | 130 | 735 | 735 | 3 | |||
| 1J50 | 0.45 | 8.2 | 500 | 25 | 170 | 130 | 785 | 450 | 685 | 150 | 3 | 37 |
| 1J79 | 0.55 | 8.6 | 450 | 2 | 210 | 120 | 1030 | 560 | 980 | 150 | 3 | 50 |
| 1J85 | 0.56 | 8.75 | 400 | 0.5 | – | – | – | – | – | – | – | – |
Permalloy bars are generally not highly susceptible to galvanic corrosion, as they have good resistance to corrosion. However, when in contact with dissimilar metals, galvanic corrosion may still occur under certain conditions.
Yes, Permalloy bars can be welded, but due to their high nickel content, specialized welding techniques, such as TIG or laser welding, and proper precautions are necessary to maintain magnetic properties.

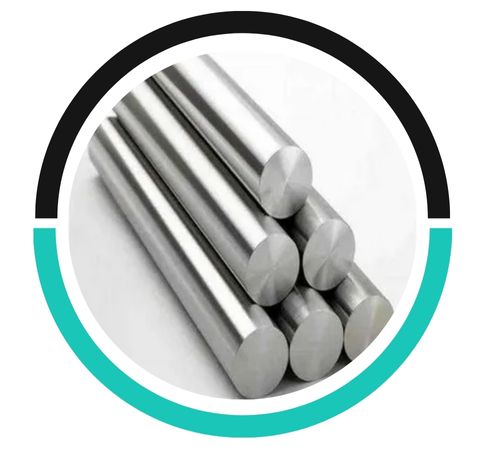

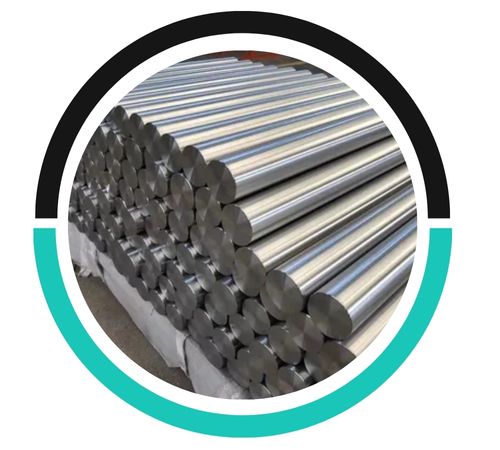

Permalloy rods are available in various sizes, typically ranging from 1/16" to 4" in diameter. Common finishes include bright, polished, or cold-drawn finishes, depending on the application requirements.
You’ll find Permalloy Bars and Rods widely used in various applications that require high magnetic performance, mechanical strength, and durability. They are often found in transformers, inductors, magnetic shielding, and electronic sensors. This alloy is also perfect for precision instruments, electromagnetic devices, and laboratory equipment where low coercivity and high permeability are crucial. Furthermore, Permalloy Bars and Rods play a vital role in power generation, telecommunications, and high-precision industrial components that demand reliable magnetic performance.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
