Phehlukwayo Metal, located in Cape Town, South Africa, is a reputable manufacturer and supplier of top-notch Phosphorous Bronze Bars and Rods. Known for their precision engineering and exceptional metallurgical skills, the company provides durable, corrosion-resistant bronze products designed to meet the needs of both industrial and commercial sectors. Phehlukwayo Metal’s Phosphorous Bronze Bars and Rods are celebrated for their outstanding wear resistance, high fatigue strength, and excellent machinability. With a strong focus on quality and customer satisfaction, the company caters to a variety of industries, including engineering, electrical, and marine, both locally and internationally.
These Phosphorous Bronze Bars and Rods are primarily made up of copper, tin, and a small amount of phosphorus. The tin boosts strength and corrosion resistance, while phosphorus enhances hardness and wear resistance. These alloys are known for their remarkable toughness, fatigue resistance, and low friction coefficient. In terms of mechanics, they provide tensile strength ranging from 350–600 MPa, along with great elasticity and superior formability. Their unique blend of mechanical strength and corrosion resistance makes them perfect for demanding environments and precision components.
| Specifications | AMS 4625, ASTM B139, ASME SB139 |

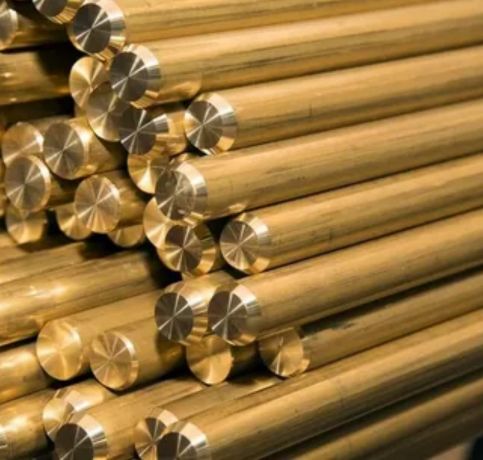

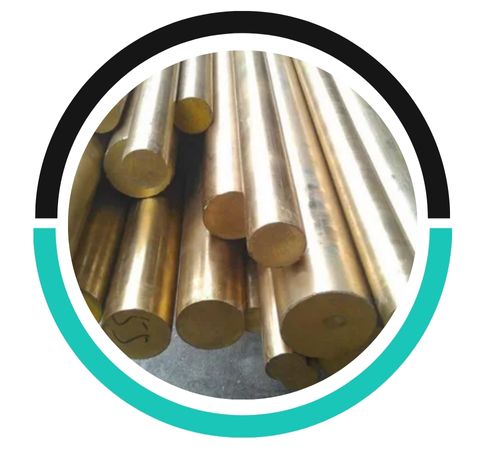

| Phosphor Bronze Round bar size | Diameter: 3mm~800mm |
| Phosphor Bronze Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Phosphor Bronze Square bar size | 4mm*4mm~100mm*100mm |

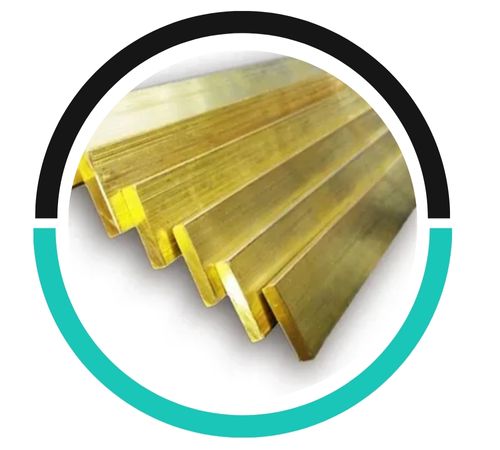

| Phosphor Bronze Flat bar size | Thickness: 2mm~100mm |
| Width: 10mm~500mm | |

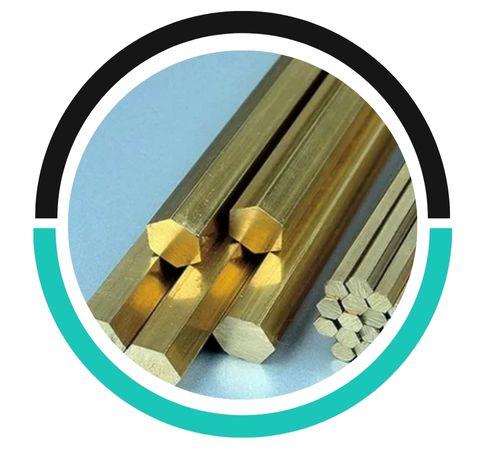

| Phosphor Bronze Hex Bar size | 2mm~100mm |
| Phosphor Bronze Billet Size | 1/2″ to 495mm Diameter |

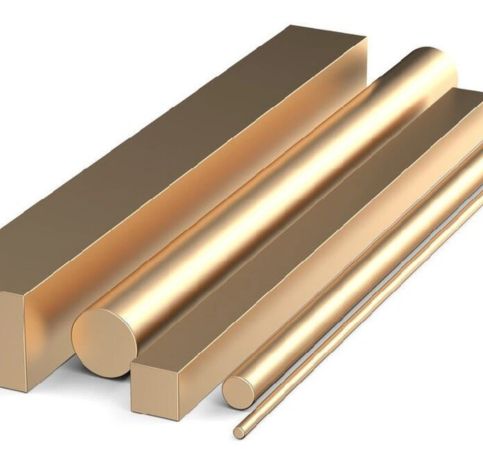

| Phosphor Bronze Rectangles Size | 33mm x 30mm to 295mm x 1066mm |
| Finish | Bright, Polish, Bright, Rough Turned, Grinding, Centreless Ground & Black |
| Length | 1000mm-6000mm |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Condition | Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Annealed round bar |
| Technique | Phosphor Bronze Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |
| Form | Round, Rod, Precision Ground Bar, Square, Round Rod, Hollow, Hex (A/F), Triangle, Rectangle, Threaded, T-Bar, Half Round Bar, Flat Bar, Rings, Blocks, Billet, Ingot, I/H Bar, Angle, Channel Bar, Profiles, Forging Etc. |
| Alloy number | Sn | P | Pb | Zn | Cu+Sn+P |
| C5191 | 5.5-7.0 | 0.03-0.35 | ≥99.5 | ||
| C5441 | 3.0-4.5 | 0.01-0.50 | 3.5-4.5 | 1.5-4.5 | ≥99.5 |
| Grade B.S. 1400: 1985 | Nominal Composition | 2% PS N/mm Min | Tensile Strength N/mm Min | Elongation % Min | Brinell Hardness Min |
| PB1 | 89/10/01 | 130 | 250 | 5 | 60 |
| PB1 | 88/12 | 140 | 260 | 7 | 80 |
| PB1 | 90/10 | 130 | 250 | 5 | 60 |
| PB1 | 90.5/9.5 | 130 | 240 | 5 | 80 |
| LPB-1 | 87/8/2/3 | 80 | 175 | 7 | 60 |
| Pb2 | 88/12 | 120 | 195 | 5 | 60 |
| Pb2 PB | 88/12 95/5 | 145 130 | 295 240 | 5 5 | 80 80 |
Phosphorus bronze bars can be welded, but it requires care. The material tends to be brittle at high temperatures, so preheating and using appropriate filler materials are recommended for successful welding.
To select the right phosphorous bronze bar, consider factors such as tensile strength, corrosion resistance, conductivity, the specific environmental conditions, required durability, and mechanical properties for your application.
To select the right phosphorous bronze bar, consider factors such as tensile strength, corrosion resistance, conductivity, the specific environmental conditions, required durability, and mechanical properties for your application.
Phosphorous bronze rods are available in diameters ranging from 1/8" to 12" and lengths up to 20 feet. Finishes include hot-rolled, cold-rolled, extruded, polished, and custom-machined.
Phosphorous Bronze Bars and Rods find extensive use in the electrical, marine, and mechanical industries due to their impressive performance and durability. They are perfect for creating bushings, bearings, springs, pump components, and electrical connectors. Their anti-friction and non-sparking characteristics make them ideal for marine hardware, gears, and valve components. Plus, their corrosion resistance ensures a long service life even in humid or saline conditions. These qualities make Phosphorous Bronze Bars and Rods a go-to choice for applications that require reliability, strength, and resistance to wear and fatigue.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
