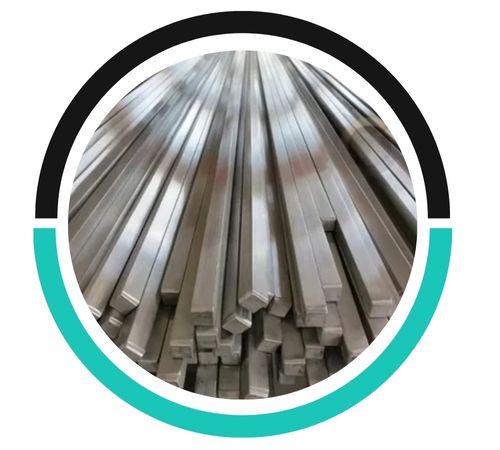

Phehlukwayo Metal, located in Cape Town, South Africa, is a reliable manufacturer and supplier of top-notch Stainless Steel 316L Square Bars and Rods. Known for their dedication to precision, durability, and dependability, Phehlukwayo Metal serves a wide range of industrial and commercial needs. Their 316L stainless steel products are crafted to meet stringent international standards, providing outstanding resistance to corrosion, oxidation, and tough environmental conditions. Thanks to advanced manufacturing methods and strict quality control, Phehlukwayo Metal offers square bars and rods that not only deliver structural strength but also ensure long-lasting performance, making them a go-to choice across various sectors.
Stainless Steel 316L is a low-carbon austenitic stainless steel alloy primarily made up of iron, chromium (16–18%), nickel (10–14%), and molybdenum (2–3%), which boosts its corrosion resistance. The low carbon content helps prevent carbide precipitation during welding, preserving its superior corrosion resistance. It boasts impressive mechanical properties, including high tensile strength, good ductility, and toughness. With a yield strength of about 290 MPa, tensile strength of 580 MPa, and an elongation of 40%, 316L square bars and rods can handle heavy loads and extreme conditions while maintaining their dimensional stability and structural integrity.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 316l | 0.08 | 18.0 | 2.00 | 14.0 | 0.045 max | 3.00 max | 0.10 max |
| Element | Density, lb/in3 | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316l | 8.0 g/cm3 | 1400 °C (2550 °F) | 485 Min | 170 Min | 40% Min |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316l | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Yes, Stainless Steel 316L Square Bars are highly corrosion-resistant, especially to pitting and crevice corrosion in chloride environments. This makes them ideal for marine and chemical applications.
Stainless Steel 316L square bars are generally non-magnetic in their annealed state. However, they may exhibit slight magnetism when cold worked.
Yes, Stainless Steel 316L square bars are suitable for heat exchangers due to their excellent corrosion resistance, high-temperature stability, and good weldability. They are ideal for applications in corrosive and high-temperature environments.
You’ll find Stainless Steel 316L square bars and rods commonly used in marine, chemical, and food processing industries due to their remarkable corrosion resistance. They’re perfect for applications like structural frameworks, fasteners, shafts, and machinery components that face aggressive environments. Plus, they’re utilized in architectural projects, medical instruments, and petrochemical equipment where durability and hygiene are essential. Their resistance to pitting and crevice corrosion makes them ideal for offshore structures, desalination plants, and chemical storage tanks. The blend of strength, formability, and reliability makes these products a top choice for many applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Phehlukwayo Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Cape Town, South Africa
