Phehlukwayo Metal, a reputable manufacturer and supplier located in Cape Town, South Africa, specializes in top-notch **Stainless Steel 316Ti Forgings** designed for exceptional strength, corrosion resistance, and performance at high temperatures. Using cutting-edge forging techniques, these components guarantee precise dimensions, a smooth surface finish, and reliable mechanical properties. Renowned for their outstanding resistance to intergranular corrosion, pitting, and chemical attacks, Stainless Steel 316Ti Forgings are perfect for tough industrial, chemical, and marine environments. Phehlukwayo Metal is dedicated to providing stainless steel products that adhere to international quality standards, catering to sectors like petrochemical, chemical processing, marine, and power generation with robust and dependable solutions.
Stainless Steel 316Ti Forgings are a titanium-stabilized austenitic stainless steel, primarily made up of iron, chromium (16–18%), nickel (10–14%), molybdenum (2–3%), and titanium (0.5–0.7%). This unique blend offers remarkable corrosion resistance, high-temperature strength, and stability against intergranular corrosion. The material boasts a tensile strength of around 515–620 MPa, yield strength of 205–275 MPa, and impressive toughness. Its ferrite-free austenitic structure ensures dimensional stability, weldability, and long-lasting durability, making it ideal for critical applications that demand high performance under chemical and thermal stress.
| Standard | ASTM A182, ASME SA182 |
| Specification | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs. |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs. |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs. |

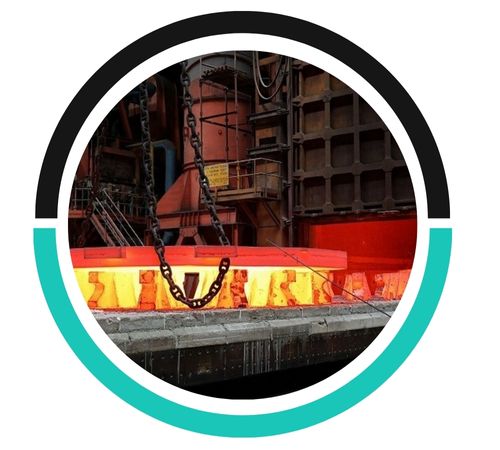

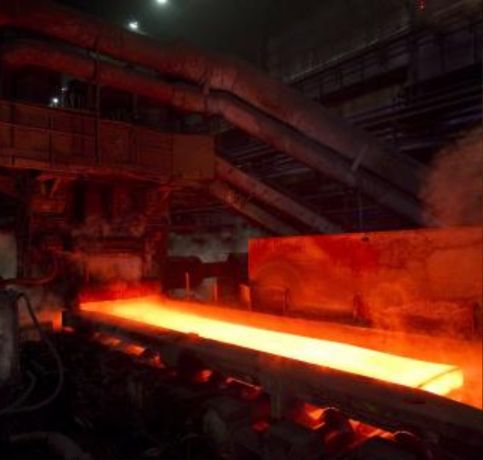

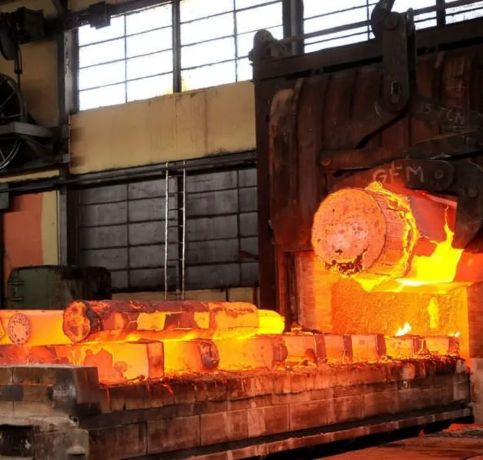

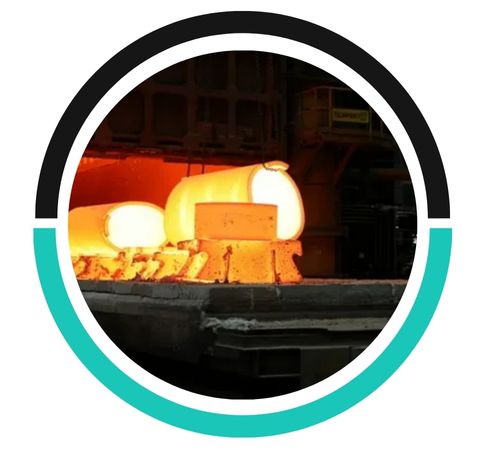

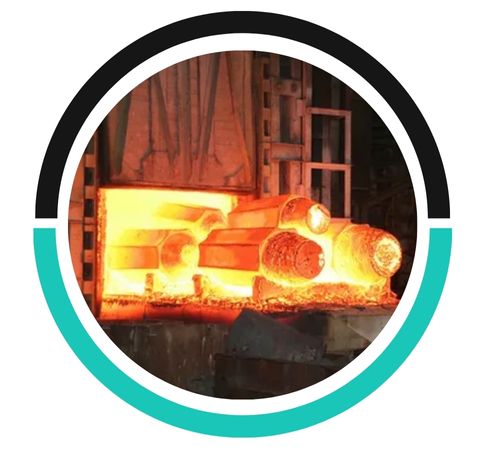

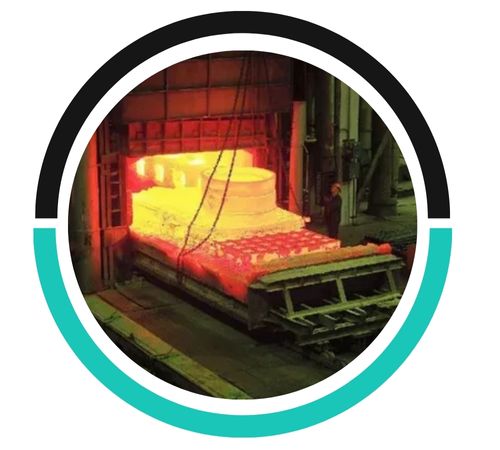

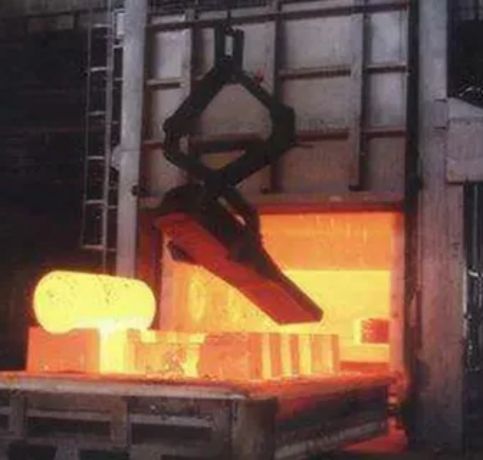

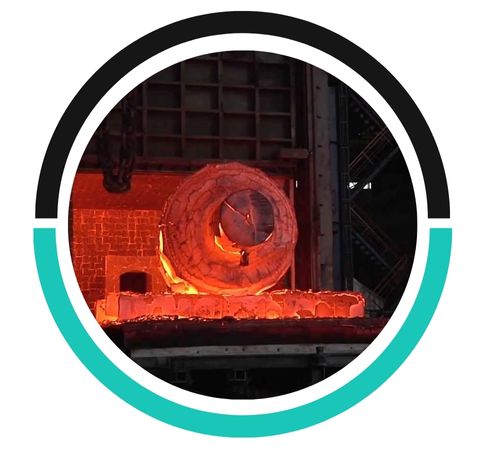

| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Yes, Stainless Steel 316Ti can be forged into custom shapes. Its excellent formability and resistance to corrosion make it suitable for creating complex designs required in various industries.
Yes, Stainless Steel 316Ti forgings are ideal for structural applications. Their excellent corrosion resistance, high strength, and ability to withstand extreme environments make them suitable for marine, chemical, and architectural structures.
Yes, Stainless Steel 316Ti forgings are ideal for structural applications. Their excellent corrosion resistance, high strength, and ability to withstand extreme environments make them suitable for marine, chemical, and architectural structures.
Stainless Steel 316Ti Forgings find extensive use in situations that require superior corrosion resistance, high strength, and stability at elevated temperatures. They’re commonly found in chemical processing equipment, heat exchangers, reactor vessels, pumps, and valves. This alloy is also well-suited for marine components, petrochemical plants, and power generation equipment that face chloride-rich and acidic conditions. Furthermore, Stainless Steel 316Ti Forgings are utilized in the pharmaceutical, food processing, and industrial machinery sectors.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
