Phehlukwayo Metals is a leading manufacturer and supplier based in Cape Town, South Africa, specializing in high quality super duplex steel products. Renowned for our expertise and commitment to excellence, we offer a wide range of Super Duplex Steel Ferralium 255 bar-rods, highly prized for their exceptional corrosion resistance, high strength and durability. Our Super Duplex Steel Ferralium 255 products are widely used in the oil and gas, marine, and chemical industries, where excellent performance under extreme conditions is required At Phehlukwayo Metals we offer reliable solutions tailored to the specific needs of our customers.
Super Duplex Steel Ferralium 255 bars and rods are specially formulated with iron, chromium (25%), nickel (7%), molybdenum (4%), and nitrogen for corrosion resistance and high strength Their mechanical properties types include high tensile strength (up to 1000 MPa), Excellent yield strength, extreme hardness and even in areas of the hardness includes High chromium and Molybdenum material for exceptional resistance to pitting, crack corrosion, stress corrosion cracking, making it ideal for harsh environments like marine, chemical, oil industries etc. Advantages include resistance to chloride induced corrosion, high strength to weight ratio, good welding -Included ability, long durability under extreme conditions.
| Grade | Ferralium 255 |
|---|---|
| Specification | Super Duplex Steel Ferralium 255 Round Bar |

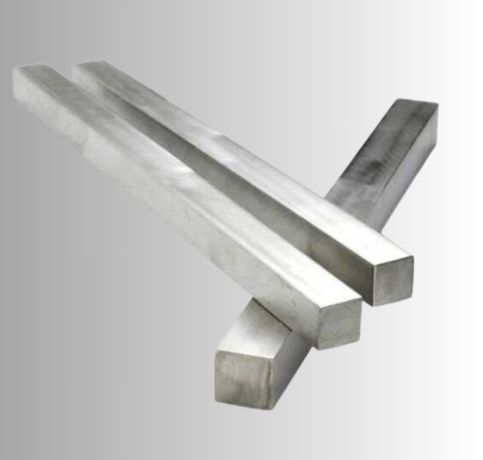

| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |

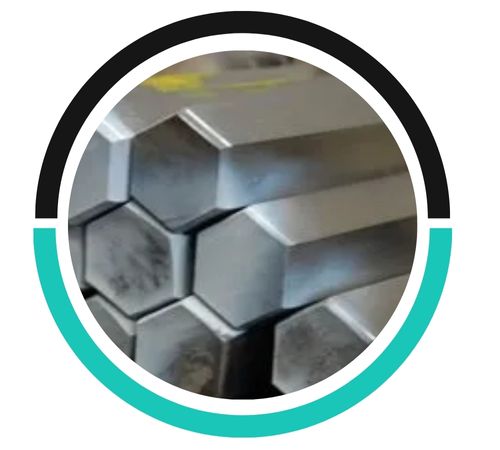

| Hex Bar size | 2-100mm A/F |

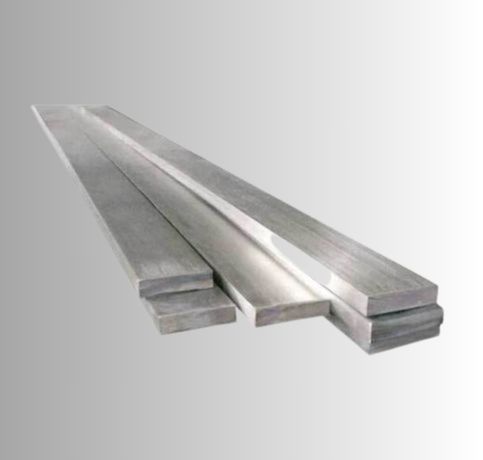

| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Section | 3.0 to 12.0mm thickness |

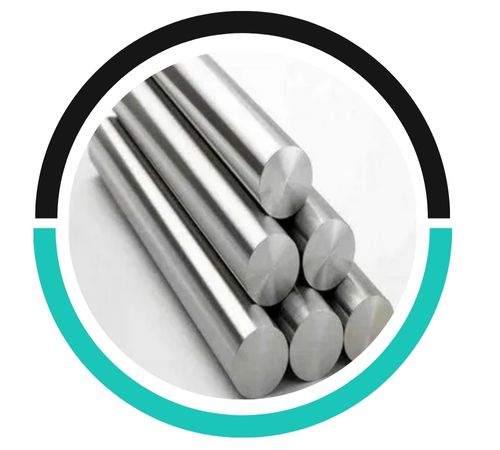

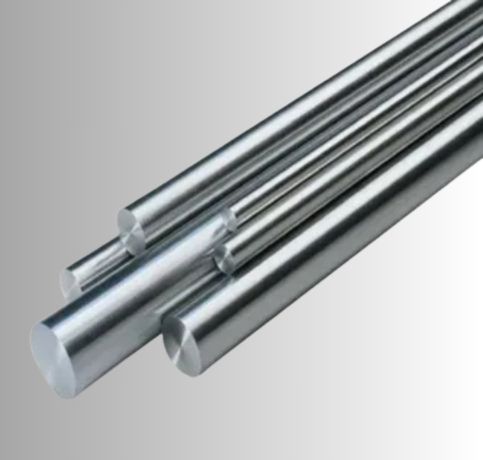

| Round bar size | Diameter: 3-~800mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Billet Size | 1/2″ to 495mm Diameter | Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Condition | Hardened & tempered, annealed |

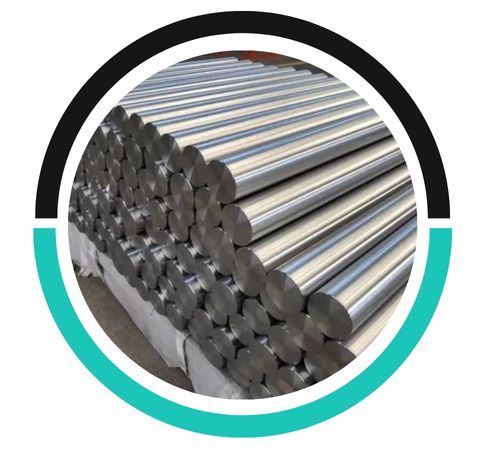

| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Technique | Ferralium 255 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |

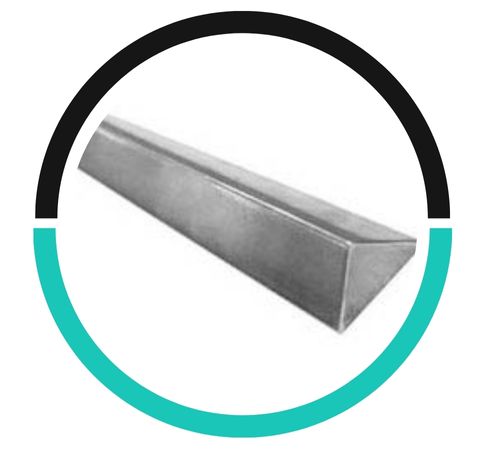

| Form | Ferralium 2507 Round Bar, Rod, T-Bar, Super Duplex Steel Channel Bar, Precision Ground Bar, Super Duplex Steel Flat Bar, Super Duplex Steel Square Bar, Super Duplex Steel Blocks, Super Duplex Steel Round Rod, Super Duplex Steel Rings, Super Duplex Steel Hollow, Super Duplex Steel Triangle, Rectangle, Hex (A/F), Super Duplex Steel Threaded, Ferralium 2507 Half Round Bar, Profiles, Super Duplex Steel Billet, Super Duplex Steel Ingot, I/H Bar, Forging etc. |
| Mo | Cu | Cr | Ni | N | Si | Mn | W | P | S | C | Fe |
| 3.5 | 1.75 | 26 | 6.3 | 0.23 | 0.15 | 0.5 | 1 max | 0.025 max | 0.025 max | Balance | 0.005 max |
| Yield Strength (0.2%Offset) | MPa – 570-600 |
| Tensile Strength | MPa – 790 |
| Elongation | 25 % |
| STANDARD | UNS | DIN |
|---|---|---|
| Ferralium 2507 round bar | S32550 | 1.4507 |
Yes, Super Duplex Steel Ferralium 255 Bars can be welded using suitable techniques like TIG, MIG, or SMAW, ensuring precise heat input control to prevent phase imbalance. Pre-heating and post-weld heat treatments may be required for optimal weld integrity.
Super Duplex Steel Ferralium 255 Rods are highly resistant to galvanic corrosion due to their excellent corrosion resistance properties. However, they may still experience some susceptibility in highly corrosive environments when coupled with more anodic materials.
Super Duplex Steel Ferralium 255 rods are available in a wide range of sizes, typically from 3mm to 500mm in diameter. They are offered in finishes such as hot-rolled, cold-drawn, and polished for various applications.
Super Duplex Steel Ferralium 255 bars are used in a variety of applications requiring excellent corrosion resistance, high strength and excellent resistance to stress forming corrosion cracking Commonly used in medical, marine applications environment, offshore oil and gas platforms , and occurs in power plants, especially at high temperatures, In applications in conditions where are as hard as salt water and in strong chemicals, these are also used in bars and rods in equipment such as heat exchangers, pressure vessels, tanks and piping systems. The superior mechanical properties and durability make Ferralium 255 ideal for complex applications where long-term performance is essential.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
