Phehlukwayo Metal, located in Cape Town, South Africa, stands out as a top manufacturer and supplier of high-quality Titanium Grade 12 Bars and Rods. These products are celebrated for their impressive strength, resistance to corrosion, and long-lasting durability, making them perfect for tough industrial settings. Phehlukwayo Metal is dedicated to precision manufacturing, adhering to strict quality standards, and ensuring global material compliance to cater to various engineering sectors. With a strong focus on innovation and excellence, the company provides Titanium Grade 12 Bars and Rods that excel in harsh chemical and marine environments, making them suitable for a wide range of critical applications.
The composition of Titanium Grade 12 Bars and Rods primarily includes titanium, with small amounts of nickel (0.6–0.9%) and molybdenum (0.2–0.4%) added to boost corrosion resistance and mechanical strength. They are known for their excellent formability, weldability, and moderate tensile strength, which ranges from 480 to 550 MPa. This material showcases outstanding resistance to crevice and pitting corrosion in both acidic and marine settings, along with remarkable toughness and stability at high temperatures, making it a go-to choice for chemical and marine engineering.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

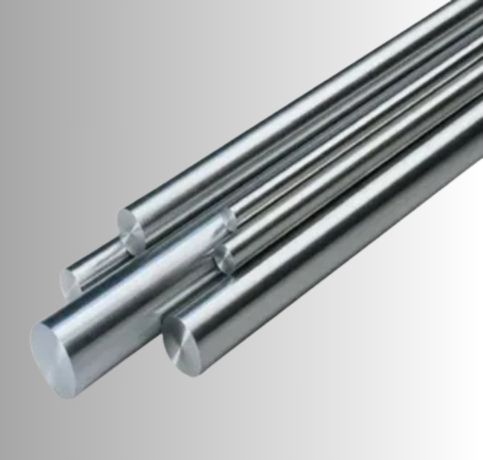

| Round bar size : | Diameter: 3-~800mm |

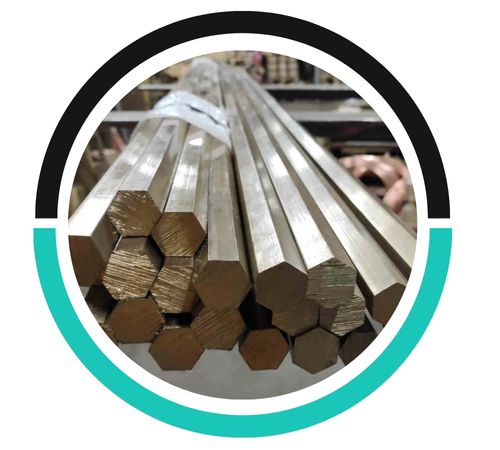

| Hex Bar size : | 2-100mm A/F |

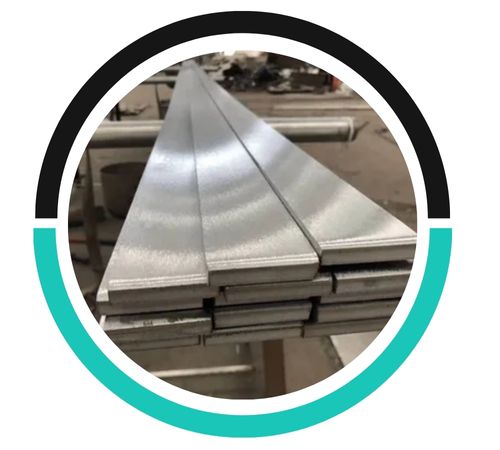

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

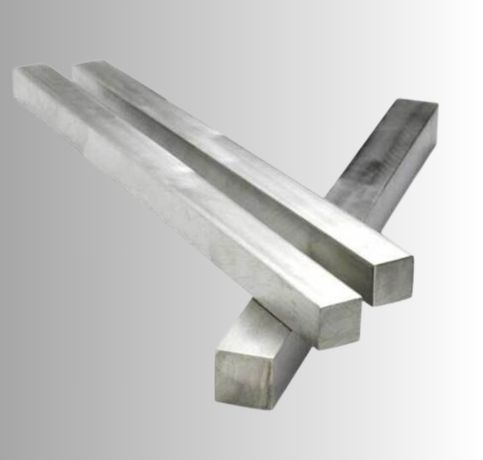

| Square bar size : | 4 to 100mm |

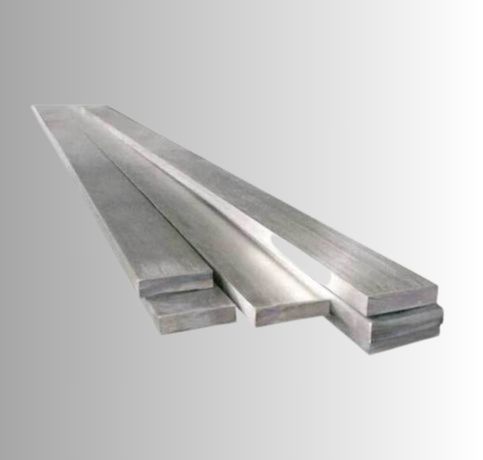

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 12 | 3.7105 | R53400 |
| Grade | C | N | O | H | Ti | Fe | Al | Pd |
| Titanium Gr 9 | .08 max | .03 max | .25 max | .015 max | Bal | 0.30 max | – | .12 – .25 |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade 12 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Density | Melting Range | Modulus of Elasticity (Tension) | Specific Heat | Mean Coefficient of Expansion | Thermal conductivity | Electrical Resistivity |
| kg/m3 | °C | GPa | J/kg. °C | x10 -6 / °C | W / m. °C | micro-ohm.m |
| 4,507 | 1668± 10 | 103 | 519 | 8.41 | 11.4 | 0.420 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Grade 12 Titanium Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Titanium Grade 12 offers excellent resistance to corrosion, especially in oxidizing and mildly reducing environments, and is highly durable in seawater and chemical processing conditions.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@phehlukwayometal.co.za
Yes, Titanium Grade 12 exhibits remarkable high-temperature resistance, making it suitable for use in power generation and industrial processes that involve elevated temperatures.
These Titanium Grade 12 Bars and Rods find extensive applications in chemical processing, desalination plants, and marine environments due to their exceptional resistance to corrosion and seawater. They are also commonly used in heat exchangers, condensers, and pressure vessels where strength and durability are paramount. Additionally, industries like aerospace, power generation, and oil and gas rely on these rods for their dependability in extreme conditions. Their excellent weldability and high mechanical performance make them a favored option for applications that require both corrosion resistance and structural integrity.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
